Waterflow Switch
The First Alert
When water moves through the sprinkler piping, the waterflow switch is the device that tells the world — triggering alarms that save lives.
What Is a Waterflow Switch?
A waterflow switch (also called a waterflow indicator, waterflow alarm switch, or flow switch) is an electromechanical device installed on the sprinkler system riser or branch piping that detects water movement within the pipe. When a sprinkler head activates and water begins to flow, the switch triggers an alarm signal to the fire alarm control panel (FACP), initiating building notification and fire department dispatch NFPA 13, §8.16.1.
The waterflow switch is the electronic link between the sprinkler system (a water-based mechanical system) and the fire alarm system (an electronic notification system). Without it, sprinkler heads would still suppress the fire, but nobody would be notified that a fire event was occurring.
Waterflow switches are required on every sprinkler system riser and on each floor in multi-story buildings so that alarm signals can identify which zone or floor is experiencing water flow NFPA 13, §8.16.1.1.
How the Waterflow Switch Works

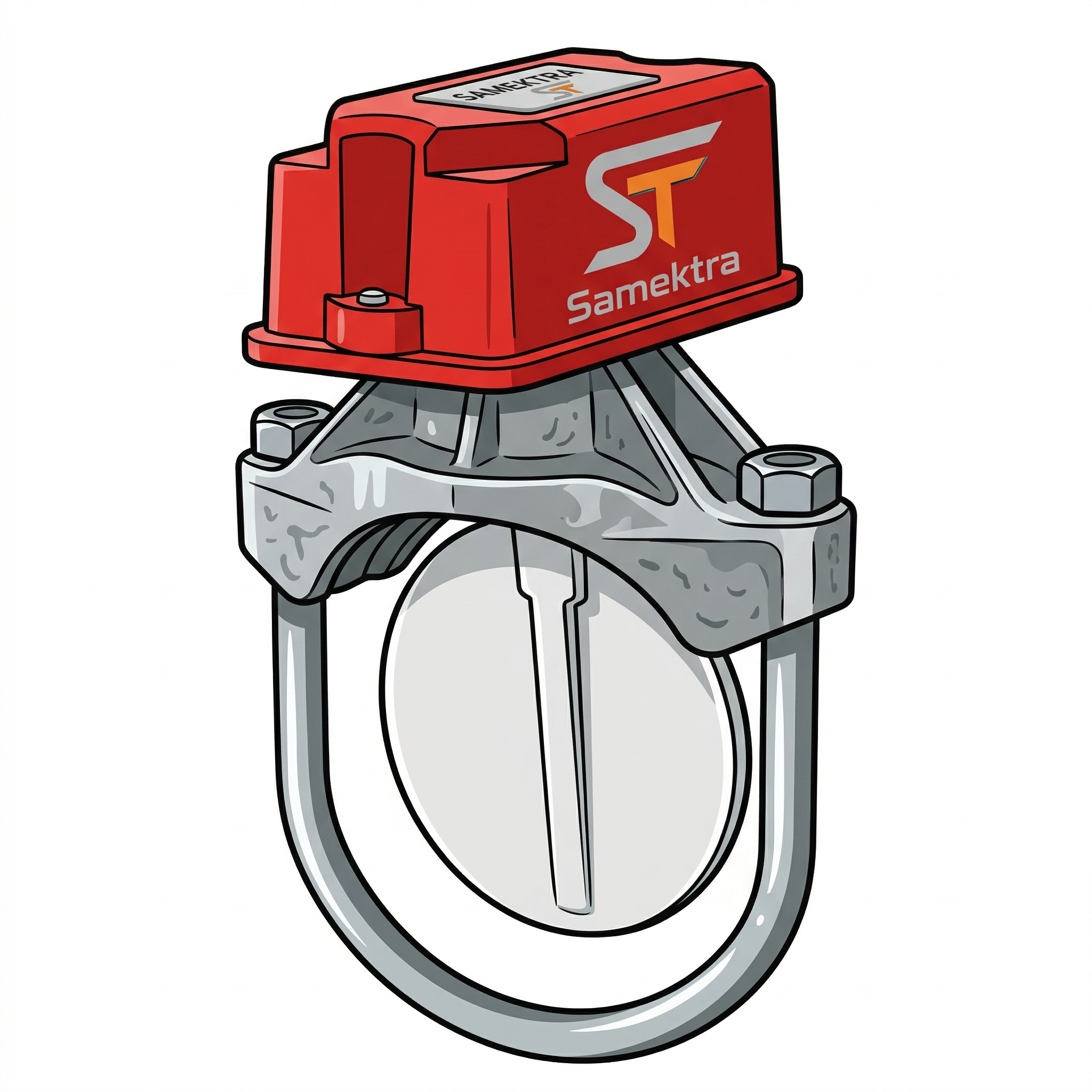

The most common type is the vane-type (paddle) waterflow switch. A thin metal vane extends into the pipe through a fitting. When water flows, it pushes the vane, which actuates a microswitch in the exterior housing NFPA 13, §8.16.1.
Types of Waterflow Switches
Vane-Type (Paddle)
Most common. A metal vane/paddle inserted through the pipe wall detects flow by physical deflection. Available for pipe sizes 2" through 8". Simple, reliable, field-adjustable retard timing.
Pressure Switch Type
Installed on alarm check valves and dry pipe valves. Detects the pressure change in the alarm line when the valve clapper lifts. Does not physically contact the water stream. Common on wet system risers with alarm check valves.
Electronic Flow Sensor
Uses electronic sensing (ultrasonic or differential pressure transducer) to detect flow. No moving parts inside the pipe. More expensive but immune to mechanical wear. Used in specialized or critical installations.
The Retard Mechanism
Every vane-type waterflow switch has a retard (time delay) mechanism — typically adjustable from 0 to 90 seconds — that prevents false alarms caused by momentary water surges. These surges happen when the jockey pump kicks on, when someone opens a drain valve briefly, or from water hammer NFPA 13, §8.16.1.4.
Typical Setting: 30–60 Seconds
Most AHJs and system designers set the retard to 30–60 seconds. This is long enough to filter out pressure surges but short enough to ensure timely alarm notification during a real fire. NFPA 13 limits the maximum retard to 90 seconds.
Retard Set Too High = Delayed Alarm
If the retard is set to 90 seconds, a sprinkler head can flow water for a minute and a half before the alarm sounds. In a healthcare facility or school, that delay could cost lives. Keep retard as low as practical while still preventing nuisance alarms.
Waterflow Switch vs. Tamper Switch
These two devices are often confused but serve completely different purposes. They are complementary — a properly monitored sprinkler system needs both.

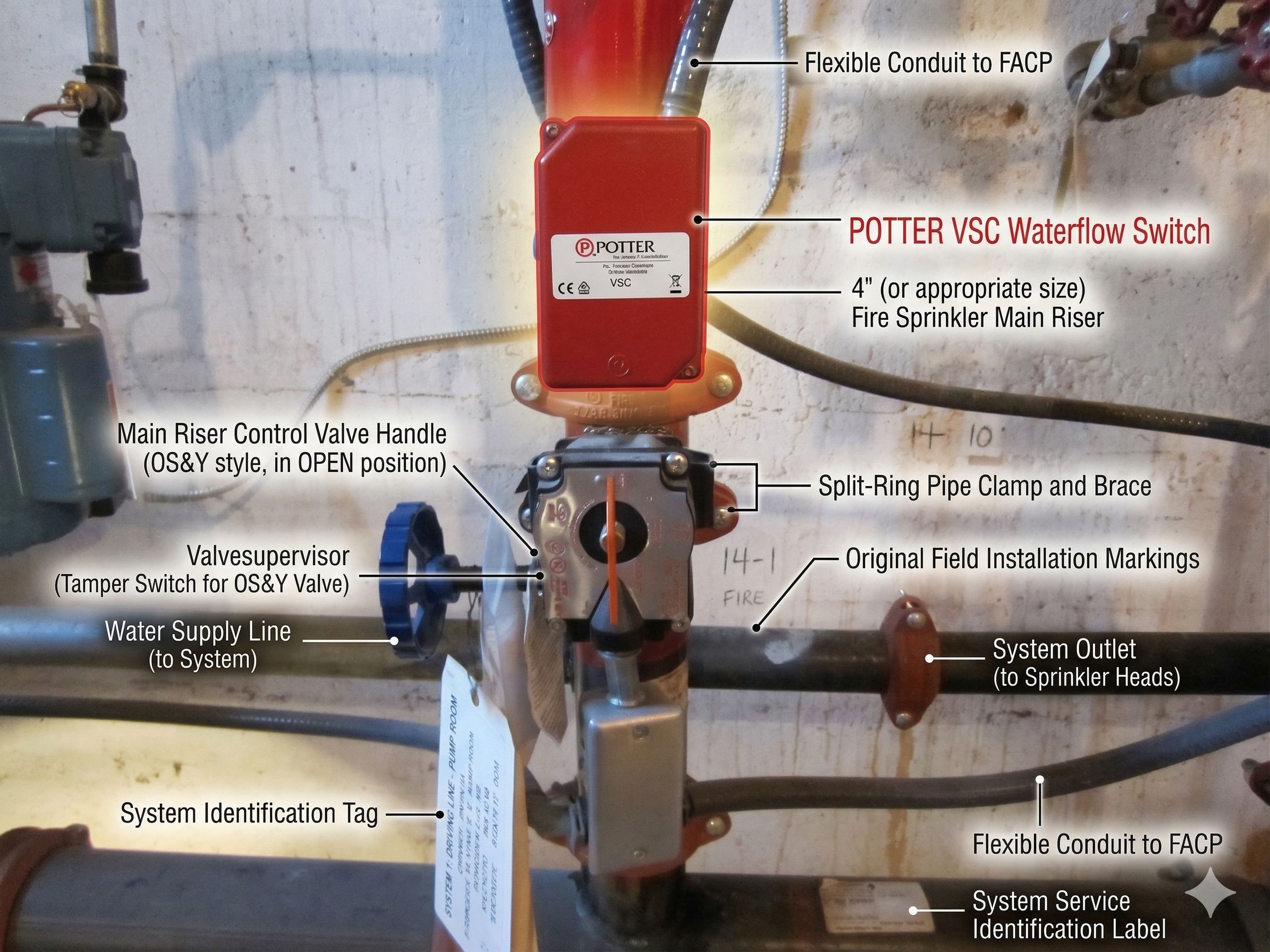

Installation Requirements
Proper installation is critical to reliable operation. A poorly positioned or incorrectly sized waterflow switch can cause either false alarms or missed activations NFPA 13, §8.16.1.
- Location: Install on the riser or floor main — at least 6 inches from any fitting to ensure stable flow patterns over the vane
- Pipe size match: Vane must be sized to match the pipe — an undersized vane may not detect low flow rates
- Orientation: The vane must hang down from the top of the pipe (gravity-neutral position) — never sideways or from the bottom
- One per zone: Each floor or zone requires its own waterflow switch for zone identification at the FACP
- Accessible: Must be accessible for inspection, testing, and maintenance — do not bury behind walls
- Wiring: Connected to a dedicated alarm zone (not supervisory) on the FACP — must be supervised for open/short circuits
NFPA 25: Waterflow Switch ITM Schedule
Common Field Issues
These are the problems technicians and inspectors encounter most often with waterflow switches in the field.
False Alarms (Nuisance Trips)
Retard set too low, water hammer in the building, jockey pump cycling causing surges, or leaking sprinkler head creating intermittent flow. The most common waterflow switch complaint.
No Alarm on Flow
Retard set too high, vane stuck or corroded in the resting position, broken microswitch in the housing, or zone disabled at the FACP. Discovered only during quarterly testing.
Wrong Zone at FACP
Alarm displays the wrong floor or zone. Often caused by wiring errors during installation or panel reprogramming. The alarm sounds, but responders go to the wrong location.
Vane Damaged or Missing
Vane broken off inside the pipe (from corrosion or water hammer), or fell during installation and was never recovered. The switch housing is intact but the sensing element is gone.
Wired as Supervisory
Waterflow switch incorrectly wired to a supervisory zone instead of alarm. Flow triggers a quiet supervisory signal instead of building alarm and fire department dispatch.
Retard Mechanism Stuck
The mechanical or pneumatic retard timer fails — either stuck open (no delay, constant false alarms) or stuck closed (infinite delay, alarm never sounds). Replace the retard assembly.
Not Tested Quarterly
The most common NFPA 25 deficiency for waterflow switches. Facilities skip quarterly testing because it requires flowing water, coordinating with the monitoring company, and resetting the panel.
Inaccessible Switch
Switch installed behind a wall, above a ceiling, or in a locked room with no key available. If the inspector cannot reach it, testing cannot be performed and deficiency is cited.
Related System Components
The waterflow switch is part of the alarm signaling chain between the sprinkler system and the fire alarm system:
▶ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube →References
1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition, §8.16.
2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition, §5.3.3.
3. NFPA 72: National Fire Alarm and Signaling Code, 2022 Edition, Chapter 17.
4. UL 346: Standard for Waterflow Indicators for Fire Protection Service.
5. NFPA Fire Protection Handbook, 21st Edition, Section 14.
