Sprinkler Heads
The First Responders

Every sprinkler head is an independent, heat-activated device β€” the last line of defense between a small fire and a catastrophic loss. This is the definitive reference.

By Samektra Β· April 2026 Β· 28 min read

What Is a Sprinkler Head?

A sprinkler head (formally, an automatic sprinkler) is a thermally activated device that detects heat from a fire, opens to release water, and distributes that water in a specific spray pattern to control or extinguish the fire. Each head operates independently β€” only the head(s) directly exposed to fire heat will activate NFPA 13, Β§3.6.1.

In over 90% of fires controlled by sprinkler systems, fewer than four heads activate. This targeted, proportional response is what makes automatic sprinkler systems so effective β€” and what separates them from deluge systems where all heads discharge simultaneously. The sprinkler head is simultaneously a heat detector and a suppression device, making it the single most important component in any water-based fire protection system.

Sprinkler heads are manufactured to precise tolerances under UL 199 (standard sprinklers) and UL 1767 (ESFR sprinklers), and tested by third-party listing agencies (UL, FM, ULC). They cannot be field-modified, repainted, re-coated, or reused after activation. Selecting the correct head for the hazard, orientation, temperature environment, aesthetic requirement, and coverage area is a design-phase decision governed by NFPA 13.

This article is the complete reference β€” covering anatomy, activation mechanisms, temperature ratings, response characteristics, K-factors, orientations, special application types, coverage rules, obstruction requirements, deflector distances, NFPA 25 testing and replacement, spare head requirements, listing markings, and the most common field deficiencies.

Anatomy of a Sprinkler Head

Understanding each part of a sprinkler head helps inspectors identify deficiencies and helps designers select the right head. Every automatic sprinkler consists of five primary components:

FrameThe structural body that connects the head to the piping fitting and supports all other components. Frames come in various profiles β€” low-profile, standard, large-frame for ESFR heads. The frame transmits heat from the surrounding air to the thermal element.
Thermal ElementThe heat-sensing mechanism β€” either a glass bulb or a fusible link/solder assembly. This is the "trigger" that holds the seal in place until the rated temperature is reached. The thermal element defines the head's temperature rating and RTI.
Seal Assembly (Cap / Pip Cap)A metal disc or cap that seals the orifice shut, held in place by the thermal element. When the thermal element releases, the seal falls away (or is blown away by water pressure), opening the orifice to flow.
OrificeThe opening through which water discharges. The orifice diameter determines the K-factor (discharge coefficient). Sizes range from 3/8" (K-2.8) for residential heads to over 1" (K-25.2) for ESFR storage heads.
DeflectorThe shaped metal plate below (pendant) or above (upright) the orifice that breaks the water stream into a specific spray pattern. The deflector design is what distinguishes pendant vs. upright vs. sidewall heads, and determines the coverage pattern's shape and reach.

Additionally, many installations include an escutcheon (trim ring or cover plate) that conceals the gap between the sprinkler fitting and the finished ceiling. Escutcheons are not part of the sprinkler head itself, but their presence is required for proper operation β€” a missing escutcheon allows hot gases to bypass the head and enter the concealed space above.

How Sprinkler Activation Works

Every sprinkler head has a thermal element that holds the seal assembly in place. When the air temperature at the head reaches its rated activation temperature, the thermal element releases, the seal drops, and water flows through the orifice onto the deflector, which shapes the spray pattern NFPA 13, Β§6.2.

Glass Bulb

  • Small glass vial filled with a glycerin-based liquid
  • Liquid expands with heat until the bulb shatters
  • Color-coded by temperature rating (see temperature table below)
  • Most common in commercial and residential applications
  • Visible status β€” intact bulb = head is operational
  • Available in 3mm (fast response) and 5mm (standard response) diameters
  • Fragile β€” can break from impact (a reason for head guards in warehouses)

Fusible Link / Solder Element

  • Two metal plates (levers) held together by low-melting-point solder
  • Heat melts the solder, plates separate, releasing the seal
  • More durable β€” less prone to accidental breakage than glass
  • Common in industrial, warehouse, and high-hazard settings
  • Cannot visually confirm integrity as easily as a glass bulb
  • Multiple link designs: half-frangible, bimetallic disc, chemical pellet
  • Solder-type heads are typically standard response (higher RTI)

How Fast Does a Sprinkler Activate?

Activation time depends on (1) the heat release rate of the fire, (2) ceiling height, (3) distance from the fire plume to the nearest head, (4) the temperature rating, and (5) the RTI. In a typical office fire, a quick-response ordinary-rated head will activate in roughly 1–3 minutes. In a fast-growing warehouse fire with ESFR heads on a 30-foot ceiling, activation can occur in under 2 minutes. The key is that activation happens while the fire is still small enough to control.

Temperature Ratings, Color Codes & Maximum Ambient

Every sprinkler head is classified by its activation temperature. The rating must be matched to the maximum expected ambient ceiling temperature at the head location β€” NFPA 13 Table 6.2.5.1 specifies the required margins. Using the wrong rating is a code violation and a life-safety hazard NFPA 13, Β§6.2.5.

ClassificationTemp RangeBulb ColorMax AmbientTypical Locations
Ordinary135–170Β°FOrange / Red100Β°F (38Β°C)Offices, corridors, hotel rooms, classrooms, most occupied spaces
Intermediate175–225Β°FYellow / Green150Β°F (66Β°C)Boiler rooms, attics, skylights, commercial kitchens, laundries, un-air-conditioned metal buildings
High250–300Β°FBlue225Β°F (107Β°C)Near ovens, industrial dryers, high-heat manufacturing, foundry periphery areas
Extra High325–375Β°FPurple300Β°F (149Β°C)Foundries, die-casting areas, smelters, high-temperature industrial processes
Very Extra High400–475Β°FBlack375Β°F (191Β°C)Chemical processing, specialized industrial β€” rare outside heavy industry
Ultra High500–650Β°FBlack475Β°F (246Β°C)Extreme industrial environments only β€” custom applications

Solder-Type Frame Color Codes

Fusible-link (solder-type) heads use frame arm paint color instead of bulb color to indicate temperature rating. This is critical for field identification when bulb color is not available:

Uncolored (bare)135–170Β°FOrdinary
White175–225Β°FIntermediate
Blue250–300Β°FHigh
Red325–375Β°FExtra High
Green400–475Β°FVery Extra High
Orange500–575Β°FUltra High

Wrong Temperature Rating = System Failure

An ordinary-rated head (155Β°F) in a hot attic that regularly exceeds 100Β°F may activate from ambient heat β€” a nuisance trip causing water damage. An intermediate-rated head (200Β°F) installed in a standard office will take significantly longer to activate in a fire, allowing the fire to grow well beyond what four heads can control. Always match the temperature rating to the maximum expected ambient ceiling temperature plus the margin specified in NFPA 13, Table 6.2.5.1.

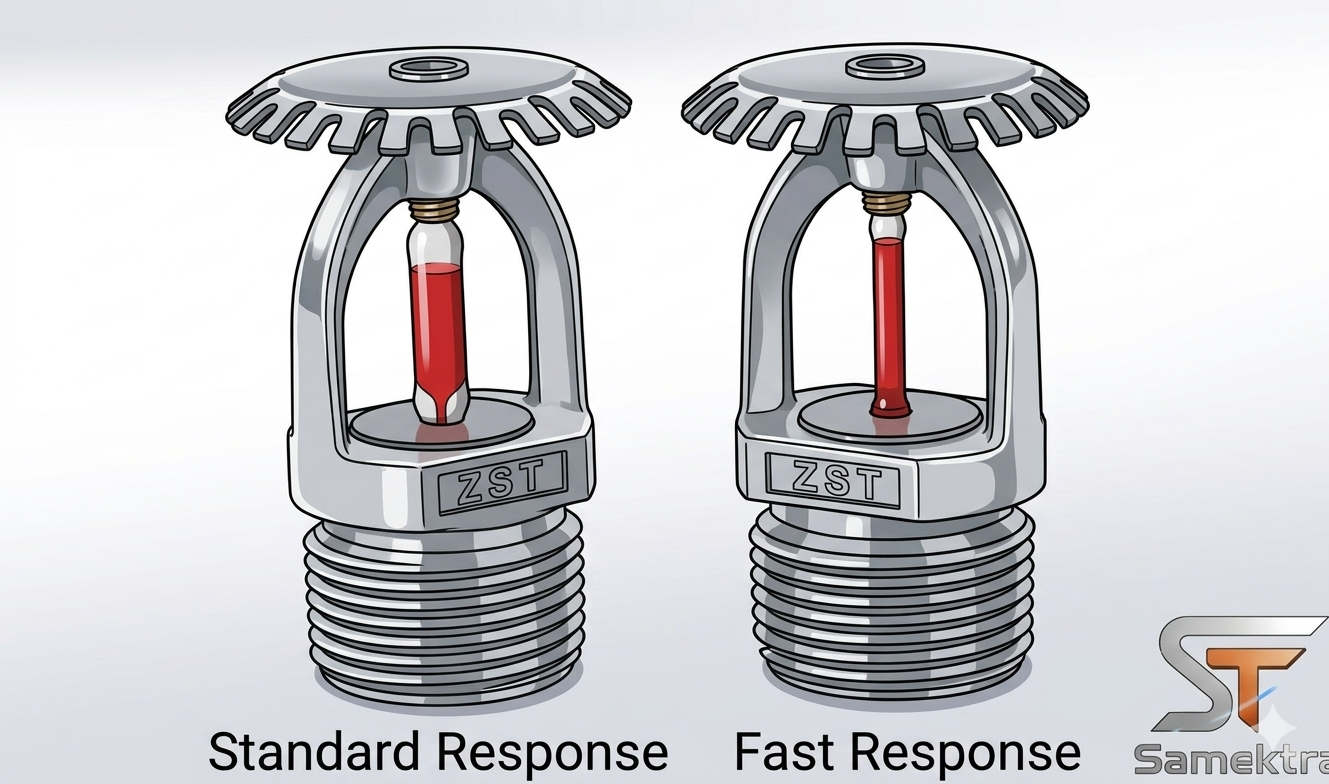

Response Time Index (RTI)

RTI quantifies how quickly the thermal element responds to the hot gas layer produced by a fire. It is expressed in (meters Β· seconds)^Β½. A lower RTI means a faster thermal response β€” the element heats up more quickly and the head activates sooner NFPA 13, Β§3.6.4.

RTI is not the same as temperature rating. Two heads can have the same 155Β°F ordinary rating but vastly different RTIs β€” one might activate in 60 seconds while the other takes 3 minutes, depending on the fire scenario. RTI is determined during listing tests by the manufacturer and cannot be changed in the field.

Quick Response (QR)

RTI ≀ 50 (mΒ·s)^Β½

Activates faster, putting water on a smaller fire. The smaller fire means fewer heads activate, less water damage, and better tenability for occupants. Required in all light hazard occupancies and all residential occupancies (NFPA 13, 13R, 13D). QR heads use a 3mm glass bulb or a fast-response fusible link. They produce a finer spray pattern optimized for smaller fire plumes.

Standard Response (SR)

RTI β‰₯ 80 (mΒ·s)^Β½

Slower activation allows a larger fire to develop before water is applied. This is intentional for storage occupancies β€” the larger fire produces a stronger plume that drives water from standard-response heads down through the stored commodities. SR heads use 5mm glass bulbs or traditional solder links. They are designed for ordinary and extra hazard occupancies with high ceilings and high-challenge fires.

ESFR (Early Suppression, Fast Response)

QR thermal element + very high K-factor

Combines a fast-response thermal element (RTI ≀ 50) with an extremely large orifice (K-14 to K-25.2). The fast activation delivers massive water volumes onto the fire before it grows. Designed to suppress β€” not merely control β€” high-challenge storage fires without in-rack sprinklers. Requires specific ceiling height, storage height, and commodity classifications per NFPA 13 Chapter 20.

Control Mode vs. Suppression Mode

This is one of the most important design concepts in sprinkler engineering β€” and one of the most tested topics on NICET exams:

Control Mode Density/Area (CMDA)

  • Traditional design approach for most occupancies
  • The sprinkler system controls the fire β€” limits its growth and pre-wets surrounding combustibles
  • Fire department is expected to complete extinguishment
  • Design is based on density (GPM/sq ft) over a design area (sq ft)
  • Uses standard-response or quick-response heads with K-5.6 through K-11.2
  • In-rack sprinklers may be needed for high-piled storage

Control Mode Specific Application (CMSA)

  • A newer control-mode approach using large K-factor heads (K-11.2 to K-16.8)
  • Design is based on number of operating heads Γ— minimum pressure instead of density/area
  • Larger water droplets penetrate fire plume more effectively
  • Can reduce or eliminate in-rack sprinklers in some storage configurations
  • Specific listings per commodity class, storage height, and ceiling height
  • Gaining popularity as an alternative to traditional CMDA in warehouses

ESFR = Suppression Mode

ESFR sprinklers do not just control the fire β€” they suppress it, driving it down to a level where it effectively self-extinguishes or stays contained until the fire department arrives. This eliminates the need for in-rack sprinklers in many warehouse configurations, but ESFR design has strict ceiling height, storage height, and clearance requirements that must be followed exactly NFPA 13, Ch. 20.

Sprinkler Head Orientations

The orientation determines how the head is mounted relative to the piping and ceiling. Each orientation uses a differently shaped deflector to produce the appropriate spray pattern. A pendant head cannot be installed upright, and vice versa β€” the spray pattern would be completely wrong NFPA 13, Β§6.2.3.

Pendant (SSP)Hangs down from the pipe β€” deflector faces the floor, producing a circular or near-circular downward spray pattern. The most common orientation in finished ceilings worldwide. Available as standard, recessed, flush, and concealed. Pendant heads are the default in offices, hotels, hospitals, retail, and most commercial spaces.
Upright (SSU)Points up from the pipe β€” deflector faces the ceiling, redirecting water downward and outward. Used in unfinished spaces where piping is exposed: warehouses, mechanical rooms, parking garages, manufacturing floors. Upright heads are standard in most storage and industrial occupancies.
Sidewall (HSW / VSW)Projects horizontally from a wall β€” deflector throws water in a half-pattern across the room. Available as horizontal sidewall (most common) and vertical sidewall. Ideal for corridors, small rooms, closets, and spaces where running ceiling pipe is impractical. Coverage area is typically smaller than pendant or upright.
ConcealedA pendant head hidden behind a flat decorative cover plate rated at a lower temperature (typically 20Β°F below the sprinkler rating). The plate drops away from heat, exposing the sprinkler to activate. Used in lobbies, conference rooms, executive offices, and high-end hotels where aesthetics matter. The cover plate IS part of the listed assembly β€” missing or wrong plates void the listing.
RecessedA pendant head that sits partially above the ceiling line with only the thermal element and deflector protruding below. A two-piece escutcheon ring covers the gap. Less intrusive than standard pendant but not fully concealed. Common in healthcare and hospitality.
FlushSimilar to recessed but the entire body sits above the ceiling with only the thermal element visible below the ceiling plane. The flattest profile short of concealed. Requires a specific escutcheon that is part of the listed assembly.
Dry Pendant / Dry SidewallAn extended-length fitting with an internal seal at the top and the sprinkler head at the bottom, allowing the head to be in a heated space while the pipe and water remain in an unheated space above. Critical for walk-in freezers and cold storage where the pipe is in a warm area above the freezer ceiling. Lengths range from 12" to 48"+.

Special Application Sprinkler Types

Beyond the standard pendant/upright/sidewall configurations, NFPA 13 recognizes several special application sprinkler types designed for specific hazards, occupancies, or building features.

Residential Sprinklers

Listed specifically for life safety in dwelling units per NFPA 13D / 13R. Designed to prevent flashover and maintain tenability for 10 minutes. Must be listed to UL 1626. Produce a wall-wetting spray pattern unique to residential use. Cannot be substituted with commercial heads.

Extended Coverage (EC)

Covers a larger area per head than standard spacing allows β€” up to 400 sq ft in light hazard (vs. 225 sq ft standard). Reduces head count and installation cost. Must be specifically listed for the intended hazard, ceiling height, and construction type. Cannot be assumed β€” the listing is head-specific.

ESFR (Early Suppression, Fast Response)

Large-orifice (K-14 to K-25.2) quick-response heads for warehouse storage. Designed to suppress high-challenge fires without in-rack sprinklers. Strict ceiling height (max 40-48 ft depending on listing), clearance, and obstruction requirements. See NFPA 13 Chapter 20.

Attic Sprinklers

Specifically listed for combustible attic spaces β€” designed to operate in the peaked geometry of a sloped roof. Horizontal, back-to-back, or single configurations. Eliminates the need for traditional branch line layouts in difficult attic geometries. NFPA 13 (2022 / 2025) significantly expanded attic sprinkler requirements.

Window / Cornice Sprinklers

Open (non-automatic) sprinklers installed over windows or along cornices for exterior fire exposure protection. Activated by a separate detection system or deluge valve. Used where buildings are too close together and fire could spread through windows. Governed by NFPA 13 Β§10.3.

In-Rack Sprinklers

Installed within storage racks at intermediate levels to suppress fire deep inside the rack structure where ceiling sprinklers may not penetrate. Required for certain commodity classes and storage heights under CMDA design. May be reduced or eliminated with ESFR or CMSA ceiling sprinklers.

Open Sprinklers (Deluge)

Have no thermal element β€” the orifice is always open. Used in deluge systems where all heads discharge simultaneously when a separate detection system activates the deluge valve. Common in aircraft hangars, transformer yards, and chemical processing.

Corrosion-Resistant Sprinklers

Wax-coated, polyester-coated, or specially plated heads for corrosive environments β€” swimming pools, wastewater treatment, coastal salt air, chemical exposure. The coating must be factory-applied by the manufacturer. Field-applied coatings void the listing.

K-Factor & Orifice Size

The K-factor is a discharge coefficient that defines the relationship between water pressure and flow rate at a sprinkler head. The formula is: Q = K Γ— √P (where Q = flow in GPM, K = K-factor, P = pressure in PSI). A higher K-factor means more water flows at the same pressure NFPA 13, Β§6.2.7.

K-factor is determined by the orifice diameter and the internal geometry of the head. It is stamped on the deflector or frame of every listed sprinkler head and cannot be changed. Selecting the right K-factor is critical β€” an undersized K-factor requires higher system pressure (bigger pump), while an oversized K-factor may deliver more water than needed, increasing pipe sizes and water supply requirements.

K-FactorOrificeGPM @ 7 PSITypical Application
K-2.83/8"7.4 GPMResidential (NFPA 13D) β€” small orifice for single-family dwellings
K-4.27/16"11.1 GPMResidential and light hazard β€” small-orifice commercial
K-5.61/2"14.8 GPMStandard orifice β€” the workhorse of commercial sprinkler design (light & ordinary hazard)
K-8.017/32"21.2 GPMLarge orifice β€” ordinary hazard, lower-pressure municipal supplies
K-11.23/4"29.6 GPMExtra-large orifice β€” storage, OH-2, CMSA storage applications
K-14.0~7/8"37.0 GPMESFR β€” high-piled storage up to Class IV commodities, 25 ft storage height
K-16.8~15/16"44.4 GPMESFR β€” cartoned unexpanded plastic, higher commodity classes
K-22.4~1"59.3 GPMESFR β€” exposed expanded plastic, challenging storage configurations
K-25.2~1-1/16"66.7 GPMESFR β€” maximum challenge: idle pallets, exposed Group A plastics, highest storage heights
K-33.6~1-3/16"88.9 GPMSpecialized storage β€” listed for very specific commodity/height combinations

Quick Math: K-Factor in Practice

A K-5.6 head at 15 PSI delivers: 5.6 Γ— √15 = 5.6 Γ— 3.87 = 21.7 GPM. The same pressure through a K-11.2 head delivers: 11.2 Γ— 3.87 = 43.3 GPM β€” exactly double. This is why K-factor selection directly impacts pipe sizing, pump requirements, and water supply adequacy.

Coverage Areas & Spacing Rules

NFPA 13 specifies maximum coverage areas (sq ft per head) and maximum spacing distances (ft between heads) based on hazard classification, construction type, ceiling height, and head type. Exceeding these limits is one of the most common installation deficiencies found during acceptance inspections NFPA 13, Β§8.5–8.12.

Hazard ClassMax CoverageMax SpacingExample Occupancies
Light Hazard225 sq ft (standard) 400 sq ft (EC listed)15 ftOffices, churches, hospitals, hotels, schools, museums
Ordinary Hazard Gr. 1130 sq ft15 ftParking garages, restaurants, electronic plants, laundries
Ordinary Hazard Gr. 2130 sq ft15 ftMachine shops, dry cleaners, leather goods, paper processing
Extra Hazard Gr. 1100 sq ft (min 90)12 ftPrinting, woodworking, textile manufacturing, rubber processing
Extra Hazard Gr. 2100 sq ft (min 90)12 ftFlammable liquid spraying, plastics processing, solvent use
High-Piled StoragePer Ch. 20–25 listingsPer listingWarehouses, distribution centers, rack storage, idle pallets

Minimum Distance from Walls

Heads must be at least 4 inches from any wall (measured from the center of the head to the wall face). The maximum distance from a wall is one-half the maximum allowable spacing β€” for example, in light hazard with 15 ft max spacing, heads must be within 7.5 ft of any wall NFPA 13, Β§8.5.2.

Deflector-to-Ceiling Distance

The distance from the ceiling to the sprinkler deflector is critical β€” too close and the spray pattern cannot develop; too far and hot gases bank down past the head without activating it. NFPA 13 specifies:

Standard pendant/upright (unobstructed)1 inch12 inchesMost common: 4–6 inches from ceiling
Standard pendant/upright (obstructed)1 inch18 inchesAllows positioning below obstructions
Sidewall4 inches6 inchesMeasured from ceiling to top of deflector
ESFR (upright)6 inches18 inchesPer specific listing; typically 6–12 inches
Concealed (pendant)Per listingPer listingCover plate flush with ceiling β€” distance is fixed by the assembly

Obstruction Rules

Sprinkler heads must have unobstructed discharge. NFPA 13 Β§8.5.5 provides detailed rules for both continuous and non-continuous obstructions:

The 18-Inch Rule

No storage or obstructions are permitted within 18 inches below the sprinkler deflector. This is the single most cited sprinkler deficiency in warehouses and storage occupancies. It applies to the top of stored commodities, not just fixed obstructions. Maintaining this clearance is an ongoing operational requirement, not just an installation requirement.

The 3Γ— Rule (Non-Continuous)

For non-continuous obstructions (pipes, conduit, single beams) less than 12 inches wide, the minimum horizontal distance from the sprinkler to the obstruction must be at least 3 times the maximum dimension of the obstruction. For example, a 4-inch pipe must be at least 12 inches horizontally from the sprinkler. If the obstruction is unavoidable, additional heads are required below it.

How to Read a Sprinkler Head Marking

Every listed sprinkler head is permanently marked (stamped on the deflector or frame) with identifying information. Learning to read these markings is essential for inspection, replacement, and spare head verification NFPA 13, Β§6.2.8.

Information Stamped on Every Listed Sprinkler

  • Manufacturer's name or logo β€” identifies who made the head (Viking, Tyco/Johnson Controls, Reliable, Victaulic, etc.)
  • SIN (Sprinkler Identification Number) β€” a unique alphanumeric code that identifies the exact model, K-factor, temperature, finish, and orientation
  • Temperature rating β€” usually stamped as the degree value (e.g., "155Β°F" or "68Β°C")
  • K-factor β€” stamped as "K5.6", "K8.0", "K14.0", etc.
  • Orifice size designation β€” sometimes a letter code (e.g., "EC" for extended coverage)
  • Year of manufacture β€” critical for NFPA 25 age-based replacement requirements
  • Listing mark β€” UL, FM, ULC, or cULus indicating third-party certification
  • RTI indicator β€” "QR" for quick response, or absence indicates standard response

Why the SIN Matters

When replacing a sprinkler head, you must match the exact SIN or use a head with identical characteristics (same K-factor, temperature, orientation, orifice, response, and finish). Installing a different model β€” even from the same manufacturer β€” can void the system design and violate the listing. The SIN is the key to ordering the correct replacement from the spare head cabinet.

NFPA 25: Complete Sprinkler Head ITM Schedule

NFPA 25 Chapter 5 covers all inspection, testing, and maintenance requirements for sprinkler heads. This is one of the most detailed ITM schedules in the standard because sprinkler heads are the most numerous and most vulnerable component in the system.

QuarterlyVisual inspection of all heads β€” check for loading (dust, grease, paint), corrosion, physical damage, leaks, correct orientation, proper escutcheon/cover plate, and adequate clearance from storageNFPA 25, Β§5.2.1
AnnualVerify spare head cabinet β€” correct types, correct temperature ratings, minimum quantities per NFPA 13, and matching wrenches for every type installedNFPA 25, Β§5.4.1.5
AnnualCheck for heads with signs of leakage at the seat β€” replace any head with visible weeping or drippingNFPA 25, Β§5.2.1.1
5-YearFast-response heads in harsh environments (per Table 5.2.1.1.1) β€” submit a representative sample to a recognized testing lab or replace all heads in the areaNFPA 25, Β§5.3.1.1
10-YearDry-type sprinklers β€” replace or field-service test per manufacturer's instructions. Dry pendants and dry sidewalls have internal seals that degrade over timeNFPA 25, Β§5.3.1.1.1
20-YearStandard-response heads manufactured before 1920 β€” replace. All other standard-response heads β€” submit sample to a recognized testing lab or replaceNFPA 25, Β§5.3.1.1
50-YearFast-response heads reach their maximum service life β€” replace regardless of lab test results. Standard-response heads β€” retest every 10 years after 50NFPA 25, Β§5.3.1.1.1
Any TimeImmediately replace any head that is painted, corroded beyond function, damaged, leaking, missing a glass bulb, or has a loading that cannot be removed by gentle cleaningNFPA 25, Β§5.2.1.1

The NFPA 25 Lab Test Process

When age-based testing is required (at 20 years for SR heads, 5 years for QR in harsh environments), the building owner has two options: replace all heads, or submit a sample to a recognized testing laboratory. Here is how the lab test works:

Lab Sample Testing Procedure per NFPA 25, Β§5.3.1.1
1Select a representative sample β€” minimum of 4 heads (or 1% of the total, whichever is greater) from each area of concern
2Include heads from the most adverse conditions β€” high heat, corrosive environments, oldest heads
3Ship heads to a recognized testing laboratory (e.g., UL, FM, or an ISO 17025 accredited lab)
4Lab tests heads for proper function β€” activation temperature, flow rate, spray pattern, and structural integrity
5If ALL sample heads pass β€” the remaining heads in the area may remain in service for another 10 years
6If ANY head fails β€” replace ALL heads represented by that sample throughout the building
7Replace the tested heads with new heads from the spare head cabinet (tested heads cannot be reinstalled)
8Document the test results and retain records for the life of the system

One Failure = Replace All

If even one head in the sample fails the lab test, every head in the represented area must be replaced. There is no partial pass. This is why many facility managers choose to proactively replace heads rather than risk a failed sample that forces a much larger replacement β€” often mid-budget-year.

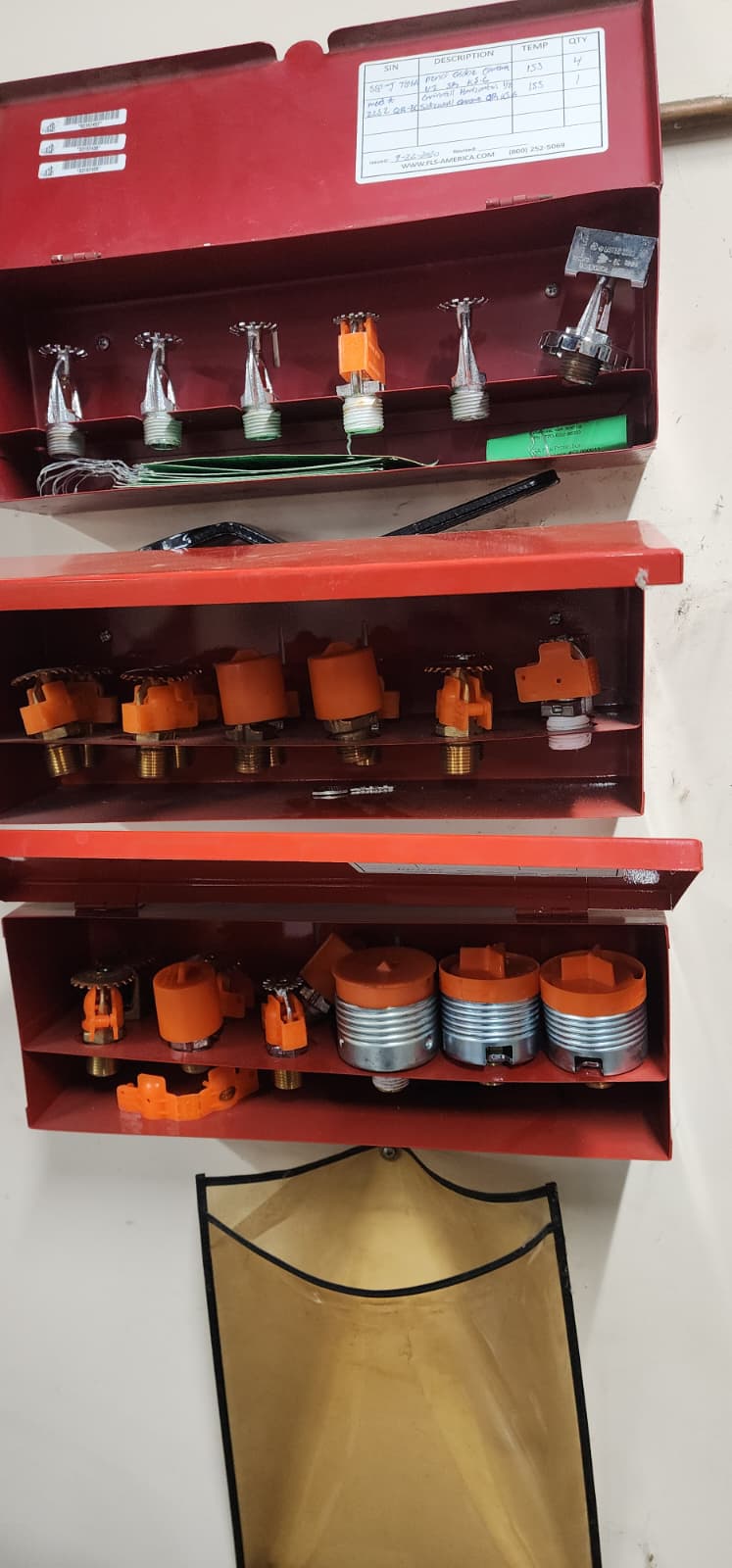

Spare Head Cabinet Requirements

NFPA 13 requires every sprinkler system to have a supply of spare sprinkler heads and wrenches stored in a cabinet on the premises. This ensures that damaged or activated heads can be replaced immediately rather than waiting for an order NFPA 13, Β§6.2.9.

Total Heads InstalledMinimum Spares Required
Under 300 heads6 spare heads of each type and temperature rating installed in the system
300 – 1,000 heads12 spare heads of each type and temperature rating installed in the system
Over 1,000 heads24 spare heads of each type and temperature rating installed in the system

Cabinet Requirements

  • A sprinkler wrench for each type of head installed (concealed heads need their own specific wrench)
  • Cabinet must be located where temperatures will not damage the spare heads (not in a boiler room or freezer)
  • Spare heads should be stored upright in the cabinet, not loose β€” bulbs and links are fragile
  • After any head activation or replacement, replenish the cabinet immediately
  • The cabinet must be accessible β€” not locked behind a door with no key, not buried in storage
  • Spare heads older than their replacement age (20 years for SR, 50 years for QR) cannot count toward the minimum

The Absolute Rule: Never Paint a Sprinkler Head

This rule is so important it deserves its own section. Sprinkler heads must never be painted, coated, or covered with any material after leaving the factory β€” not during renovation, not to match the ceiling, not for any reason NFPA 25, Β§5.2.1.1.

Paint on the Thermal Element

Paint insulates the glass bulb or fusible link, significantly delaying or preventing activation. A painted head may never activate, or activate minutes later than designed.

Paint on the Orifice / Seal

Paint can seal the orifice shut or prevent the seal cap from releasing. Even if the thermal element activates, no water flows β€” complete system failure at that head.

Paint on the Deflector

Paint changes the deflector's surface characteristics, altering the spray pattern. Water may not distribute correctly, leaving areas of the fire unprotected.

Any head with any amount of paint must be replaced β€” there is no approved method for removing paint from a sprinkler head. Protective bags are available from manufacturers to cover heads during painting and renovation. The cost of a bag is cents; the cost of replacing a painted head is $50–200+ installed; the cost of a fire with a non-functioning head is immeasurable.

Common Field Issues & Inspection Deficiencies

These are the deficiencies inspectors, fire marshals, and technicians encounter most frequently during quarterly and annual sprinkler head inspections. Many appear on AHJ reports, TJC surveys, and insurance audits.

Painted Heads

Any paint on any part of the head β€” frame, bulb, deflector, orifice, or seal β€” is an immediate replacement. The #1 most avoidable sprinkler deficiency. Typically caused by renovation painters who were not given protective bags or were not told about the rule.

Corrosion & Loading

Dust, grease, cooking oil, or corrosion buildup on the deflector or thermal element impairs activation and spray pattern. Common in commercial kitchens, parking garages, natatoriums (pool areas), and industrial spaces. If loading cannot be removed by gentle cleaning, replace the head.

Missing Escutcheons

The escutcheon (trim ring / cover plate) seals the gap between the head and the ceiling or wall. A missing escutcheon allows hot gases to bypass the head into the concealed space above, delaying activation and potentially preventing it entirely. Common after renovation or ceiling tile replacement.

Wrong Temperature Rating

Ordinary heads (155Β°F) installed in high-heat areas (boiler rooms, attics, skylights, commercial kitchens) β€” will nuisance-trip. Intermediate heads (200Β°F) in standard offices β€” will activate late. Verify every head against the maximum ambient ceiling temperature per NFPA 13 Table 6.2.5.1.

Obstructed Spray Pattern

Shelving, decorative elements, signage, ductwork, light fixtures, or stored materials within 18 inches below the deflector. The single most common spacing/obstruction violation in occupied buildings. Requires ongoing vigilance, not just installation compliance.

Storage Within 18 Inches

In warehouses and storage rooms, the 18-inch clearance between the top of storage and the sprinkler deflector is the most frequently cited deficiency. Often found during surprise inspections when stock levels have increased. This is an operational requirement β€” the building owner's responsibility.

Recalled or Obsolete Heads

Several manufacturers have issued recalls over the decades (e.g., certain Central Sprinkler heads with O-ring seals, some GEM heads). Obsolete heads whose replacements are no longer available must be replaced with compatible current-production models. Check CPSC recall lists.

Missing Spare Heads

Cabinet empty, wrong types stocked, wrong temperatures, wrench missing, or cabinet not accessible. A simple but frequent finding. Verify spare head type, temperature, and quantity against what is actually installed during every annual inspection.

Upright / Pendant Swap

A pendant head installed in an upright position (or vice versa). The spray pattern is completely wrong β€” a pendant head installed upright will spray water back up at the ceiling instead of down onto the fire. This is a critical installation error.

Concealed Head Cover Plates

Cover plate missing, cover plate from wrong manufacturer or wrong model, cover plate painted, or cover plate not properly attached. The cover plate is part of the listed assembly β€” the wrong plate can prevent activation or cause the head to malfunction.

Damaged Glass Bulb

Cracked, chipped, or empty glass bulb found during visual inspection. The head will not activate properly (or has already leaked). Impact from stored materials, tools, or forklifts is the usual cause. Head guards protect against this in warehouses.

Exceeding Age Requirements

Heads older than 20 years (SR) or 50 years (QR) without lab testing or replacement. Common in older buildings where the original sprinkler system has never been renovated. Determine manufacture date from the head stamping or the original contractor records.

Related System Components

Sprinkler heads work as part of an integrated fire protection system. Every component in the chain must function for the head to do its job. Click any component to read its full article:

Wet Sprinkler SystemThe most common system type — water in the pipes, instant discharge on head activation→Dry Sprinkler SystemAir-filled pipes for freeze-prone areas — head activates but water is delayed until the dry pipe valve trips→Fire PumpBoosts system pressure to ensure adequate flow and pressure at the most remote head→Control ValveOS&Y or butterfly valve controlling water supply — must be open for heads to discharge→Piping NetworkSteel, CPVC, or grooved pipe delivering water from the riser to each sprinkler head→Inspector's TestRemote test station that simulates one-head flow to verify waterflow alarm activation→Waterflow SwitchElectronic sensor that detects water movement when a head activates — triggers building alarm→Fire Department ConnectionExterior inlet where FD pumpers supplement system water supply during a fire→

β–Ά Watch on YouTube

See sprinkler system inspections and maintenance on What The Fire Code.

Watch on YouTube β†’

References

1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition.

2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition.

3. NFPA 13R: Standard for Sprinkler Systems in Low-Rise Residential Occupancies, 2022 Edition.

4. NFPA 13D: Standard for Sprinkler Systems in One- and Two-Family Dwellings, 2022 Edition.

5. UL 199: Standard for Automatic Sprinklers for Fire-Protection Service.

6. UL 1767: Standard for Early Suppression Fast Response Sprinklers.

7. FM Global Property Loss Prevention Data Sheet 2-0: Installation Guidelines for Automatic Sprinklers.

8. FM Global Property Loss Prevention Data Sheet 8-9: Storage of Class 1, 2, 3, 4, and Plastic Commodities.

9. NFPA Fire Protection Handbook, 21st Edition, Section 16, Chapter 3.

10. Sprinkler Technology β€” AFSA (American Fire Sprinkler Association) Technical Resources.

Was this article helpful?

Rate this article to help us improve

Discussion (2)

You
MR
Mike R.Fire InspectorΒ· 3 days ago

Great breakdown of the technical details. The NFPA 25 maintenance table is exactly what I needed for my ITM schedule.

β–² 8Reply
SL
Sarah L.Safety OfficerΒ· 1 week ago

Really clear explanation. Would love to see a companion video walkthrough of the inspection process.

β–² 5Reply
