Inspector's Test Station
Simulating the Emergency

The inspector's test lets you prove your sprinkler alarm works β€” without breaking a single sprinkler head.

By Samektra Β· April 2026 Β· 10 min read

What Is an Inspector's Test Station?

An inspector's test station (also called an inspector's test connection or ITC) is a test assembly installed at the hydraulically most remote point of a sprinkler system that simulates the flow of a single sprinkler head. Its purpose is to verify that the waterflow alarm devices (waterflow switch, water motor gong, and fire alarm signaling) are working properly β€” without activating an actual sprinkler head NFPA 13, Β§8.17.4.

The inspector's test consists of a test valve and a test orifice sized to match the smallest sprinkler head in the system. When opened, it creates the same flow rate as one activated sprinkler head, which is enough to trigger the waterflow switch and all downstream alarm devices.

This is the primary test point used during quarterly waterflow alarm testing per NFPA 25. It is one of the most frequently used test devices in fire protection β€” inspectors, fire marshals, and maintenance technicians use it every quarter to prove the alarm chain is intact from water flow through central station notification.

Components of the Inspector's Test Station

A complete inspector's test station is a simple but specific assembly. Every component serves a purpose in simulating a single-head activation.

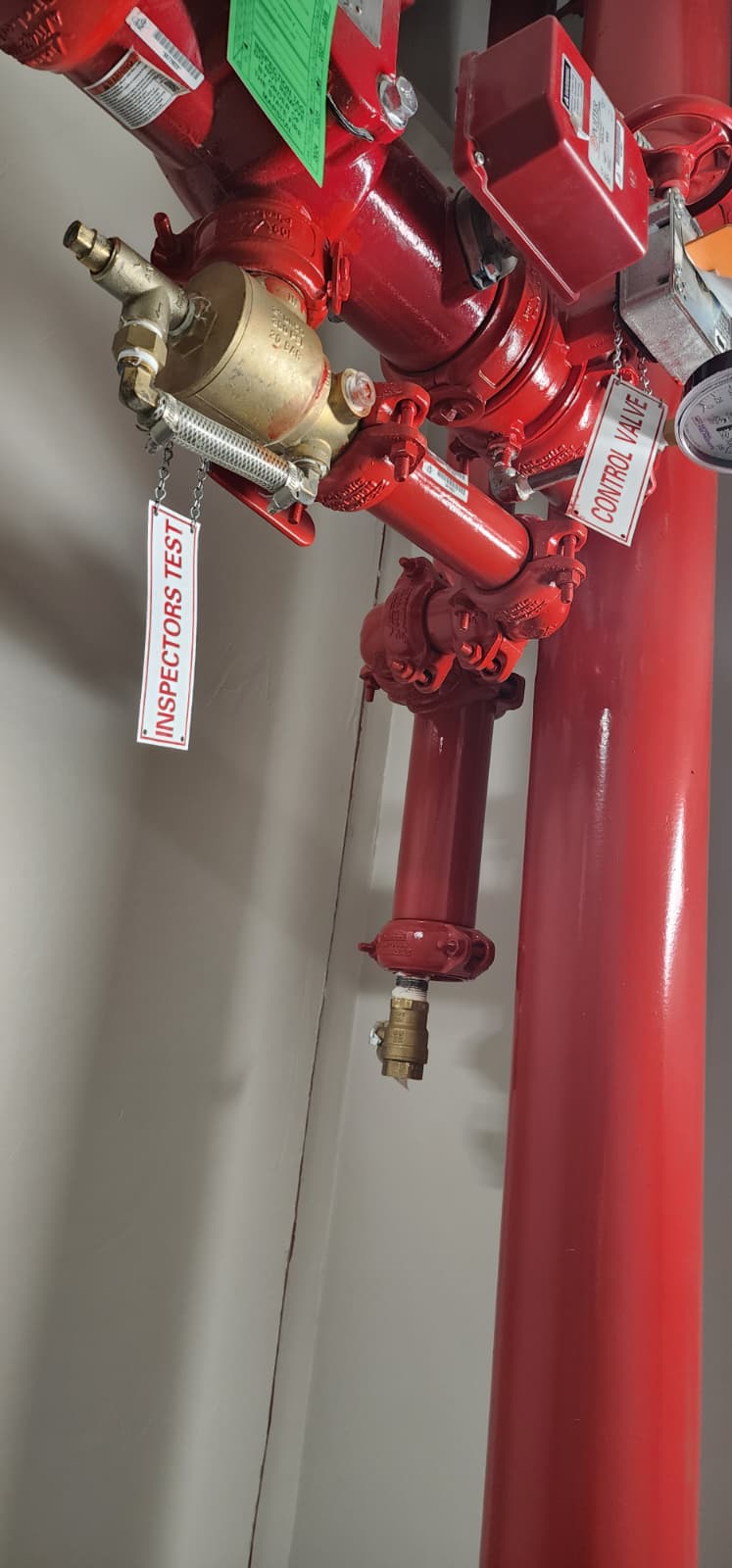

Test ValveA globe or ball valve that controls water flow through the test assembly. Must be accessible, labeled, and in the closed (normal) position.

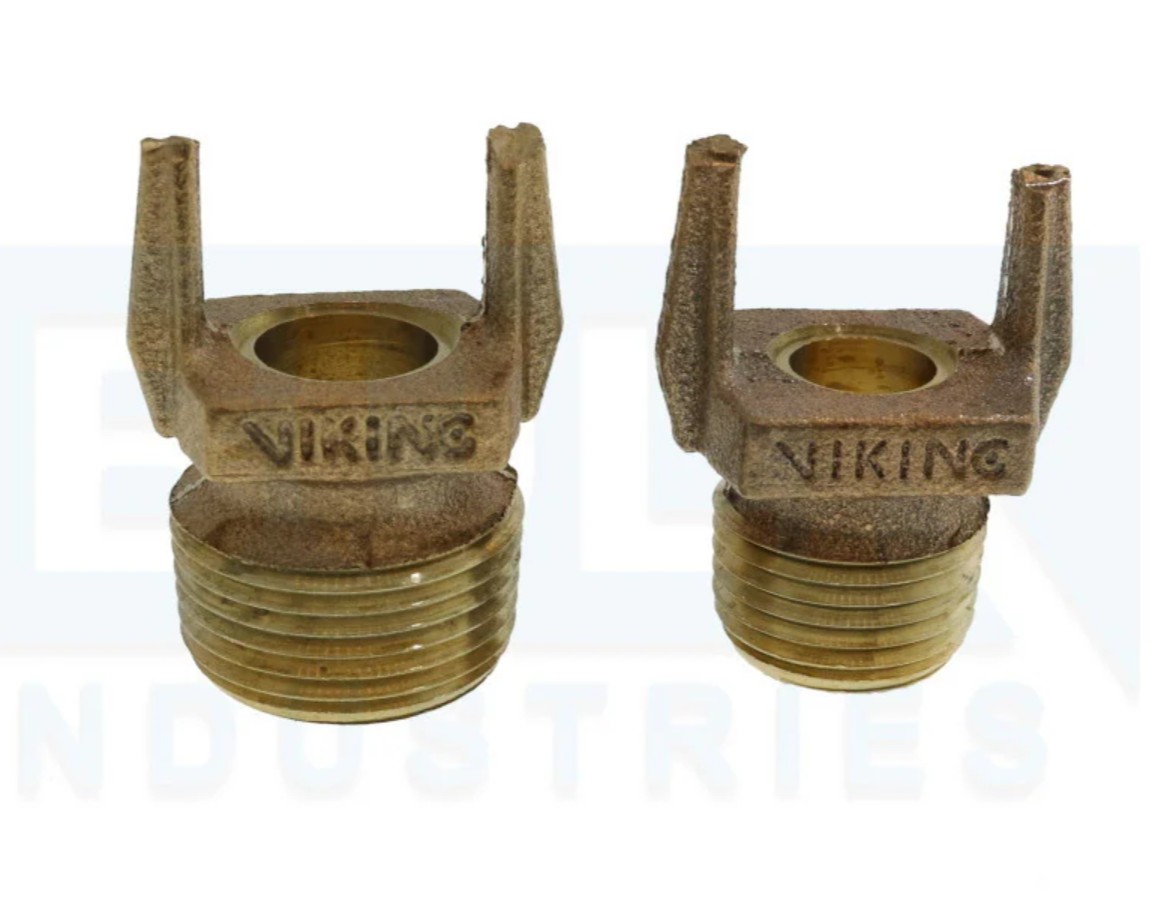

Test OrificeA calibrated orifice plate or fitting sized to match the smallest K-factor sprinkler head on the system. Typically a smooth-bore orifice equivalent to a K-5.6 head at the system's residual pressure.
Sight Glass (Optional)A clear section of pipe or fitting that allows visual confirmation that water is flowing through the test assembly during testing.
Drain / DischargeThe water discharged through the test orifice must go somewhere β€” typically piped to a floor drain, exterior, or a collection point. Must not cause water damage.
SignageA sign reading "INSPECTOR'S TEST" identifying the assembly. NFPA 25 requires that it be readily identifiable.
Pressure Gauge (Optional)Some installations include a gauge upstream of the test valve to measure system pressure at the most remote point during testing.

Why the Most Remote Point?

NFPA 13 requires the inspector's test to be at the hydraulically most remote point from the waterflow alarm device β€” typically the farthest sprinkler head location from the riser. This ensures the test validates the worst-case scenario NFPA 13, Β§8.17.4.1.

The Logic Behind Remote Placement

  • If the waterflow switch can detect flow from the farthest point, it will certainly detect flow from any closer point
  • The most remote point has the lowest pressure β€” testing here confirms the alarm trips even under worst-case flow conditions
  • For multi-story buildings, each floor's system should have its own inspector's test to verify that floor's waterflow switch
  • In dry systems, the remote test also verifies trip time β€” how long it takes for water to travel from the dry pipe valve to the remote point

How to Perform the Quarterly Test

The inspector's test is the standard method for the quarterly waterflow alarm test required by NFPA 25, Β§5.3.3. Here is the step-by-step procedure:

Quarterly Waterflow Alarm Test Procedure
1Notify the central monitoring station that you are conducting a test β€” put the account on "test" to prevent fire department dispatch
2Notify building occupants if the test will activate audible/visible alarms in occupied areas
3Go to the inspector's test station at the most remote point of the system
4Record the system pressure at the test location (if a gauge is installed)
5Slowly open the test valve fully β€” water flows through the test orifice
6Start a timer β€” record the time it takes for the waterflow switch to send an alarm signal to the FACP
7Verify the alarm signal is received at the FACP β€” correct zone, correct alarm text
8Verify the signal transmitted to the central monitoring station β€” call the station to confirm receipt
9For dry systems: record the trip time from valve opening to water at the test station
10Close the test valve β€” verify the alarm signal clears and the system restores to normal
11Notify the central station that the test is complete β€” take the account off "test"
12Record all results in the inspection report β€” time to alarm, pressures, any deficiencies

Dry System Trip Time

For dry sprinkler systems, NFPA 25 requires recording the trip time β€” the elapsed time from opening the inspector's test valve to water discharge at the test station. NFPA 13 requires water delivery within 60 seconds for most dry systems. If trip time exceeds this, investigate for air leaks, undersized piping, or a slow dry pipe valve NFPA 25, Β§13.4.4.2.

What the Inspector's Test Proves

A successful inspector's test validates the entire alarm chain from water flow to human notification:

Waterflow Switch Works

The switch detects flow at the most remote point and sends a signal within the expected time (retard delay + processing).

FACP Receives Signal

The fire alarm panel receives the alarm, displays the correct zone/floor, and activates building notification appliances.

Central Station Receives

The alarm signal transmits through the communicator to the central monitoring station, which can dispatch the fire department.

Correct Zone ID

The alarm identifies the correct zone, floor, or area β€” sending responders to the right location.

System Has Pressure

Water flows through the test orifice, confirming the system is charged and the control valve is open.

Dry System Trip Time

For dry systems, confirms water reaches the remote point within the 60-second NFPA 13 requirement.

NFPA 25: Inspector's Test ITM Schedule

QuarterlyOpen inspector's test valve β€” verify waterflow alarm signal at FACP within 90 seconds of valve openingNFPA 25, Β§5.3.3.1
QuarterlyVerify alarm transmission to central monitoring stationNFPA 25, Β§5.3.3.1
QuarterlyFor dry systems: record trip time from valve opening to water discharge at the test stationNFPA 25, Β§13.4.4.2
AnnualInspect the test assembly β€” valve operates freely, orifice is not plugged, drain is clear, signage is legibleNFPA 25, Β§5.2
AnnualVerify test orifice size matches the smallest sprinkler head K-factor installed on the systemNFPA 25, Β§5.2

Common Field Issues

These deficiencies are found frequently during quarterly testing and annual inspections of inspector's test stations.

Valve Stuck or Seized

Test valve hasn't been operated in years β€” seized from corrosion or mineral deposits. Cannot perform the quarterly test. Exercise valves during every test to prevent this.

Plugged Orifice

The test orifice is partially or fully blocked by sediment, scale, or pipe debris. Water flows slowly or not at all, leading to a failed alarm test. Clean or replace the orifice.

No Drain / Improper Drain

Water from the test flows onto the floor, into an occupied space, or causes water damage. The discharge must be piped to a drain or exterior. Some inspectors skip the test to avoid the mess.

Wrong Orifice Size

Orifice does not match the smallest sprinkler K-factor on the system. An oversized orifice may trigger the alarm but does not validate minimum-flow detection. An undersized orifice may not trigger the alarm at all.

Cannot Locate the Station

No signage, hidden behind ceiling tiles, in a locked room, or the building has been renovated and nobody knows where it is. If it cannot be found, the quarterly test cannot be performed.

Alarm Does Not Sound

Test valve opened, water flows, but no alarm at the FACP. Cause: waterflow switch failure, retard stuck, wiring fault, or zone disabled at the panel. This is the deficiency the test exists to catch.

Central Station Not Notified

FACP receives the alarm locally, but the signal does not transmit to the central monitoring station. Communicator failure, phone line down, or IP path disconnected. Always call the station to confirm.

Dry System Trip Time Exceeded

Water takes longer than 60 seconds to reach the test station. Indicates air leaks in the system, undersized piping, or a slow-operating dry pipe valve. Must be investigated and corrected.

Related System Components

The inspector's test station validates the operation of several interconnected components:

β–Ά Watch on YouTube

See sprinkler system inspections and maintenance on What The Fire Code.

Watch on YouTube β†’

References

1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition, Β§8.17.4.

2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition, Β§5.3.3.

3. NFPA 72: National Fire Alarm and Signaling Code, 2022 Edition.

4. FM Global Property Loss Prevention Data Sheet 2-0: Installation Guidelines for Automatic Sprinklers.

5. NFPA Fire Protection Handbook, 21st Edition, Section 16.
