Alarm Check Valve
The Heart of the Wet Riser
Installed at the base of every wet sprinkler riser, the alarm check valve permits water to flow toward sprinklers while triggering the alarms that alert occupants and first responders.
What Is an Alarm Check Valve?
An alarm check valve is a specialized check valve equipped with an alarm port, installed at the base riser of a wet sprinkler system. It serves two simultaneous functions: it allows water to flow in one direction only — from the supply toward the sprinklers — and it triggers an audible and/or electrical alarm when sustained water flow occurs NFPA 13, §8.16.
Defined in NFPA 13 and listed under UL 193, the alarm check valve is the dividing line between the water supply and the sprinkler system. Every wet sprinkler riser requires one. When a sprinkler head opens and water begins to flow, the alarm check valve clapper lifts, water enters the alarm port, and the building is notified through a water motor gong on the exterior and/or an electric pressure switch connected to the fire alarm control panel.
Without a properly functioning alarm check valve, a wet sprinkler system can still suppress a fire — but no one will know it is happening until they see the water.
How the Alarm Check Valve Works
The alarm check valve contains a hinged clapper (disc) seated against a machined seat inside the valve body. Under normal standby conditions, static water pressure holds the clapper closed. The pressure is equalized on both sides of the clapper, keeping the valve sealed and the alarm port dry NFPA 13, §8.16.1.

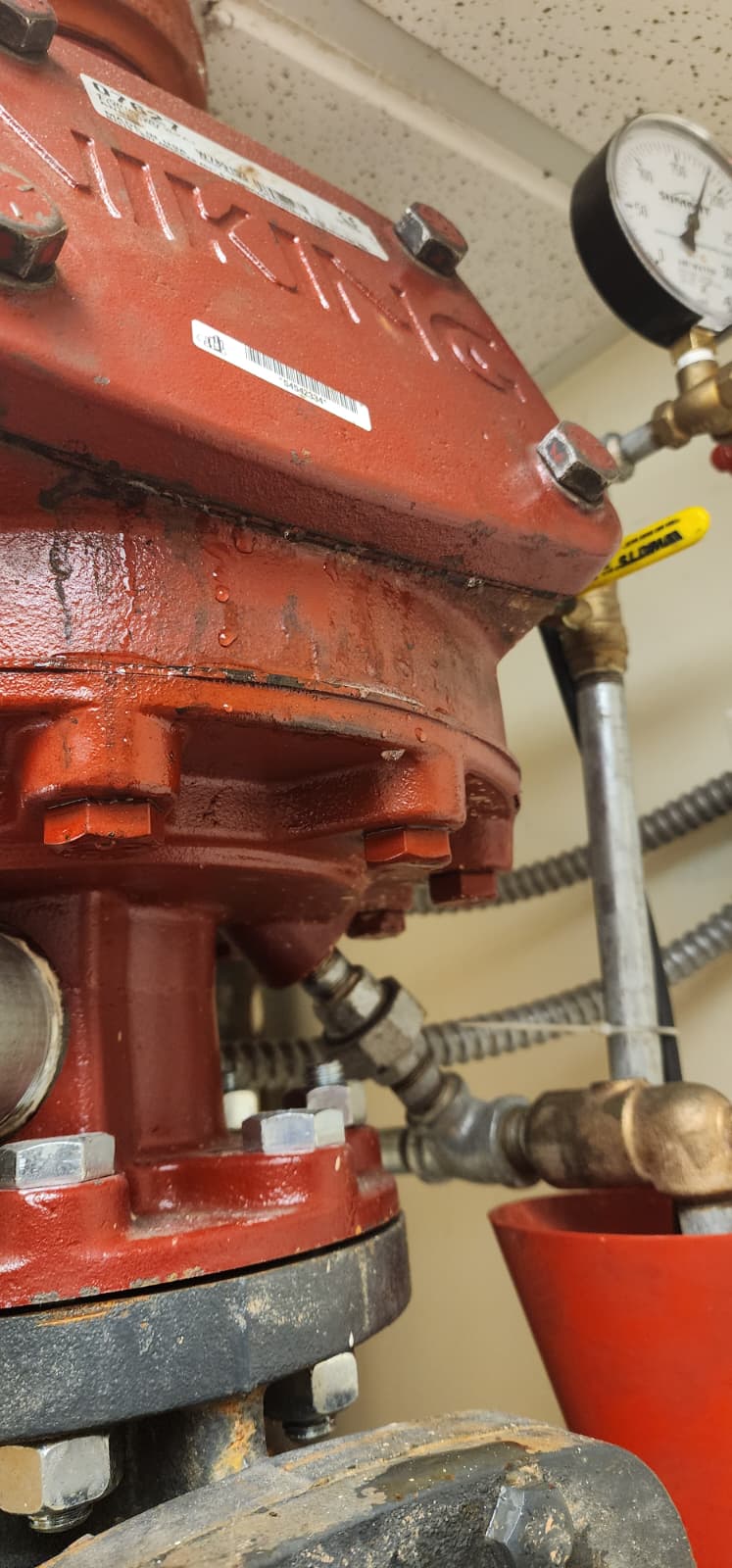

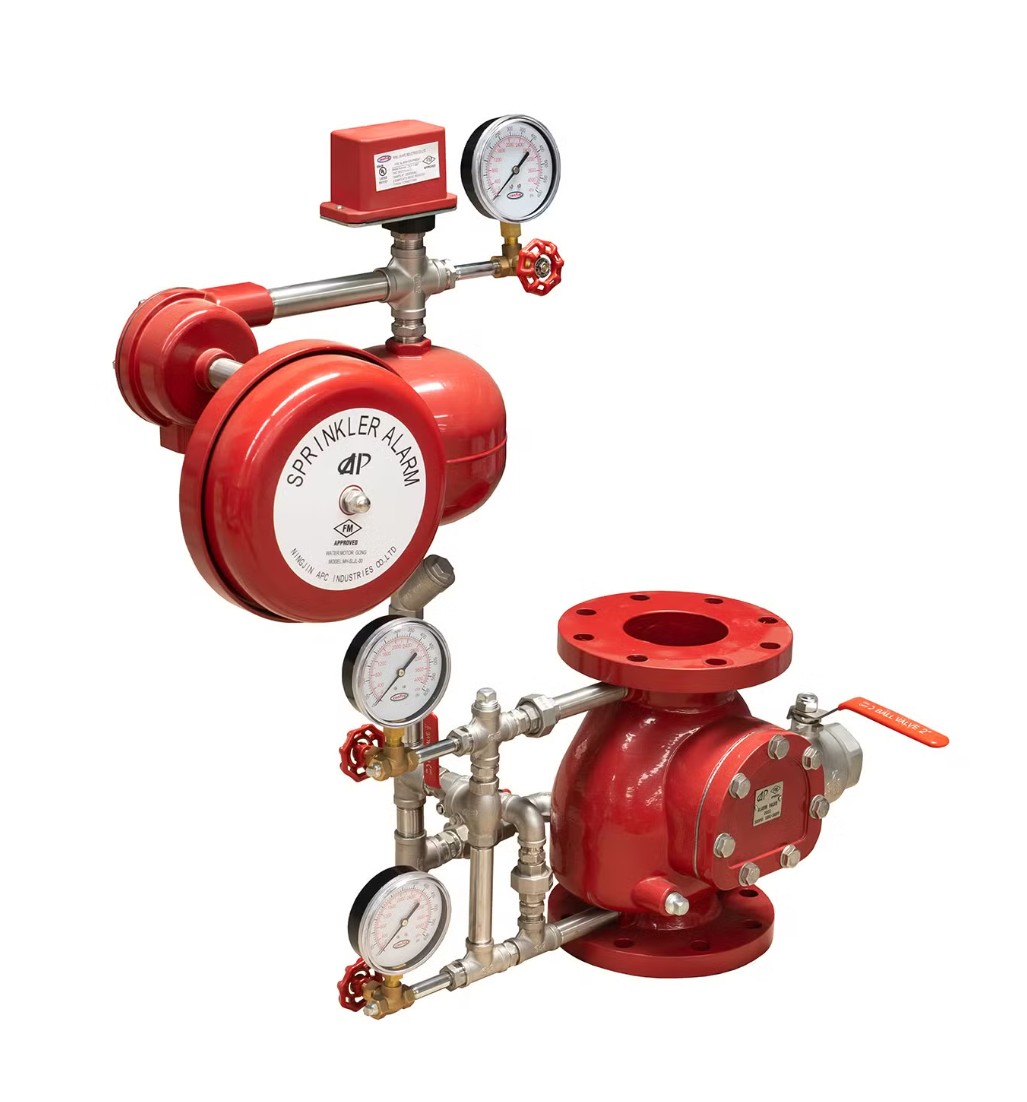

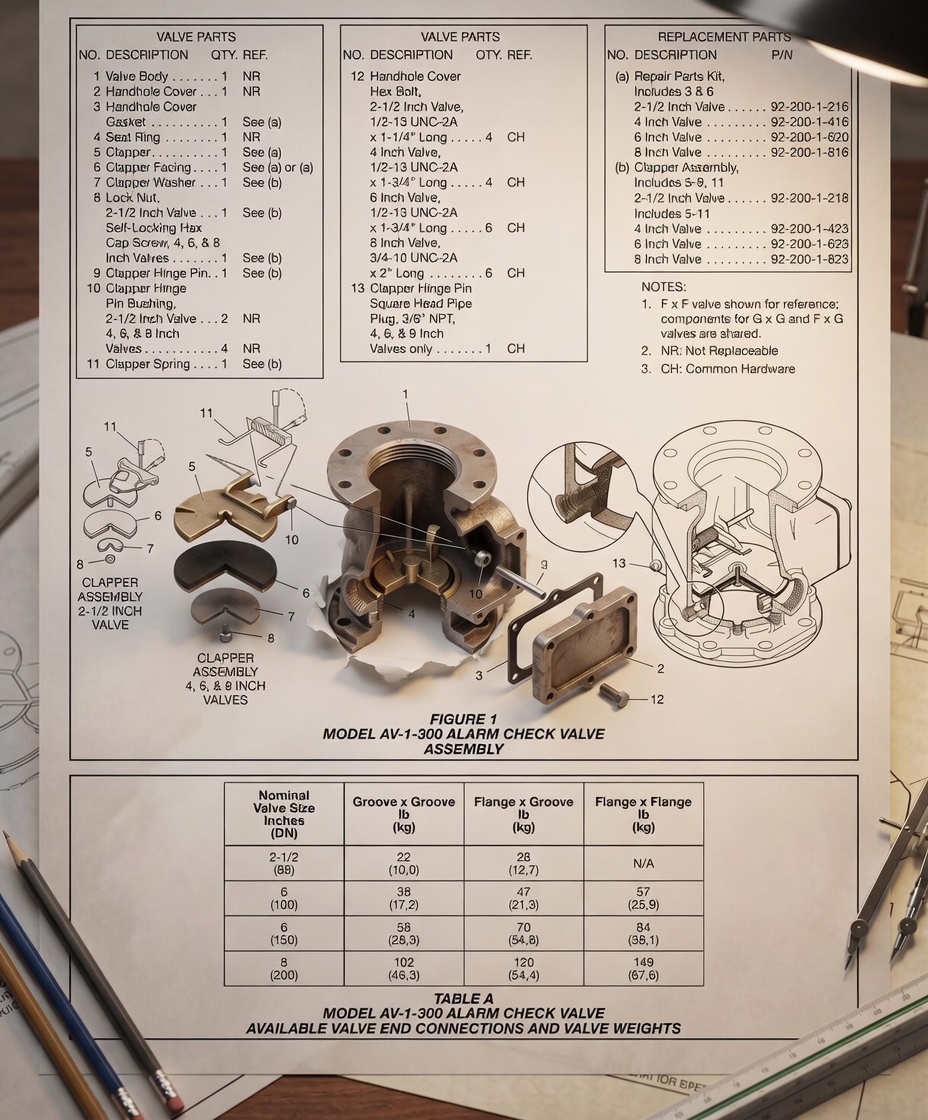

Key Components
Every alarm check valve assembly includes several critical components that work together to provide reliable one-way flow and alarm signaling.
Main Valve Body
Cast iron or ductile iron housing with flanged or grooved connections. Contains the clapper seat and alarm port. Sizes range from 3" to 8" to match the riser pipe.
Clapper (Hinged Disc)
The moving check element — a rubber-faced disc on a hinge pin. When water flows, it swings open. When flow stops, gravity and back-pressure reseat it against the machined seat.
Alarm Port & Trim
A small-bore port on the valve body connected to external piping (the "alarm trim") that routes water to the retard chamber, water motor gong, and/or pressure switch.
Retard Chamber
A small tank in the alarm trim line that collects water from brief pressure surges. A drain orifice at the bottom allows surge water to drain before it can trigger the alarm, preventing false activations.
Alarm Test Valve (Bypass)
A manually operated valve in the alarm trim that bypasses the retard chamber. Opening it sends water directly to the alarm devices for quarterly testing without requiring a sprinkler head to activate.
Main Drain Connection
A valved connection on the system side used for the main drain test. Flowing water through the main drain verifies supply adequacy and valve operation.
Pressure Gauges
Two gauges — one on the supply (inlet) side and one on the system (outlet) side. Comparing readings helps identify clapper leaks, supply problems, or closed valves.
Trim Shut-Off Valves
Isolation valves in the alarm trim piping that allow maintenance on the retard chamber, gong, or pressure switch without draining the system. Must remain open during normal service.
Types and Configurations
Flanged
Traditional connection with bolt-pattern flanges on the inlet and outlet. Common in older installations and larger pipe sizes (6" and 8"). Requires gaskets and bolt torque to spec.
Grooved
Modern grooved-end connections using mechanical couplings (e.g., Victaulic). Faster installation, easier maintenance access, and reduced seismic vulnerability. Now the standard for most new construction.
Common sizes are 3", 4", 6", and 8", matched to the riser pipe diameter. Major manufacturers include Viking, Tyco/Johnson Controls (now part of Johnson Controls), Reliable Automatic Sprinkler, and Globe Fire Sprinkler. All alarm check valves installed in fire protection service must be UL 193 listed and approved by the AHJ.
NFPA 13 Installation Requirements
NFPA 13 specifies where and how alarm check valves must be installed to ensure reliable performance NFPA 13, §8.16.
- Heated location: The alarm check valve and all trim piping must be in a space maintained at or above 40 degrees F to prevent freezing
- Accessible: Must be readily accessible for inspection, testing, and maintenance — not concealed behind walls or above inaccessible ceilings
- Alarm trim: Piped to a water motor gong on the building exterior and/or to a pressure switch connected to the FACP
- Retard chamber: Sized per the manufacturer's listing — prevents false alarms from water hammer and pressure surges
- Identification sign: A permanent sign at the valve must identify the system it serves, the number of sprinklers, and the building area covered
- Vertical orientation: Installed in the vertical riser with flow direction arrow pointing up, unless the manufacturer provides specific approval for other orientations
- Alarm test valve: A bypass valve must be installed to allow quarterly alarm testing without activating a sprinkler head
NFPA 25: Alarm Check Valve ITM Schedule
NFPA 25, Chapter 13, establishes the inspection, testing, and maintenance requirements for alarm check valves. These are among the most commonly tested items during a wet sprinkler system inspection NFPA 25, Ch. 13.
Common Deficiencies
These are the issues inspectors and service technicians encounter most frequently with alarm check valves in the field.
Trim Valves Shut Off
The most critical deficiency. Someone closes the trim shut-off valves — often to silence a false alarm — and forgets to reopen them. The sprinkler system still works, but no alarm will ever sound. This defeats the entire purpose of the alarm check valve.
Retard Chamber Not Draining
The drain orifice at the bottom of the retard chamber becomes clogged with sediment or mineral deposits. Water accumulates and eventually reaches the alarm devices, causing nuisance alarms from minor pressure fluctuations.
Internal Corrosion on Clapper/Seat
Over time, the clapper face and seat corrode or develop scale, preventing a tight seal. This allows water to weep past the clapper into the alarm port during normal standby, causing intermittent false alarms.
Missing or Broken Alarm Test Valve
The bypass valve used for quarterly testing is missing, seized shut, or has a broken handle. Without it, quarterly alarm testing requires alternative methods or cannot be performed, resulting in a deficiency.
Gauges Not Readable
Supply-side and system-side pressure gauges are broken, fogged, or have needles stuck. Gauges are essential for evaluating valve condition and water supply — unreadable gauges are cited on every inspection.
Valve Inaccessible
Storage, equipment, or construction blocks access to the alarm check valve. If the inspector cannot reach it, neither can the fire department or the service technician during an emergency.
Related System Components
The alarm check valve is a central component in the wet sprinkler system, connecting the water supply to the alarm signaling chain.
▶ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube →References
1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition.
2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition, Chapter 13.
3. UL 193: Standard for Alarm Valves for Fire Protection Service.
4. NFPA Fire Protection Handbook, 21st Edition, Section 14.
5. FM Global Property Loss Prevention Data Sheet 2-81: Fire Service Mains and Their Appurtenances.
