5-Year Internal Inspection
What's Inside Your Valves?

• Clapper and clapper seat — check for groove wear, pitting, or corrosion on the seating surface
• Clapper hinge pin and pivot — verify free movement, no binding or corrosion
• Retard chamber — drain and inspect for sediment, verify drain orifice is clear
• Alarm port and piping — verify the alarm bypass is not obstructed
• Body interior — check for scale, tuberculation, or debris that could restrict flow
• Gaskets — inspect all handhole and bonnet gaskets for deterioration

• Air clapper and water clapper — check seating surfaces for wear and corrosion
• Intermediate chamber — inspect for priming water level and sediment
• Differential latch mechanism — verify it moves freely and engages properly
• Priming cup — clean and verify correct water level
• Air-side components — check for rust and condensation damage
• Quick-opening device connection — verify not obstructed
• Drain valve and trim — check for debris in small-bore piping

• Valve clapper or diaphragm — check for deterioration, tears, or hardening
• Solenoid valve — verify electrical connection and mechanical operation
• Trim piping — check for corrosion, especially in pneumatic release lines
• Priming chamber — drain, inspect, refill
• Detection release mechanism — verify linkage to detection system
• Pilot line strainers — clean and inspect mesh for corrosion

• Clapper or disc — check for cracks, warping, or corrosion
• Seat — inspect for groove wear, pitting, or debris embedded in sealing surface
• Hinge pin — verify free swing and no binding
• Spring (if spring-loaded type) — check for corrosion or loss of tension
• Body interior — check for scale, sediment, or flow obstruction

• Basket or screen — remove and inspect for tears, holes, corrosion, or clogging
• Basket gasket — check seal condition
• Body interior — clean sediment and debris
• Blow-down valve — exercise and verify it drains properly

• Not opened — but NFPA 25 §13.2.7.2 requires gauges to be replaced or recalibrated every 5 years
• Compare gauge reading against a calibrated test gauge — must be within 3% of full scale
• Replace any gauge with a broken lens, stuck needle, or fogged dial

The most common finding on alarm check valves. Static pressure holds the clapper against the seat 24/7 for years. Micro-movement from pressure fluctuations wears a groove into the rubber or bronze seat. The groove allows continuous weeping past the seat.

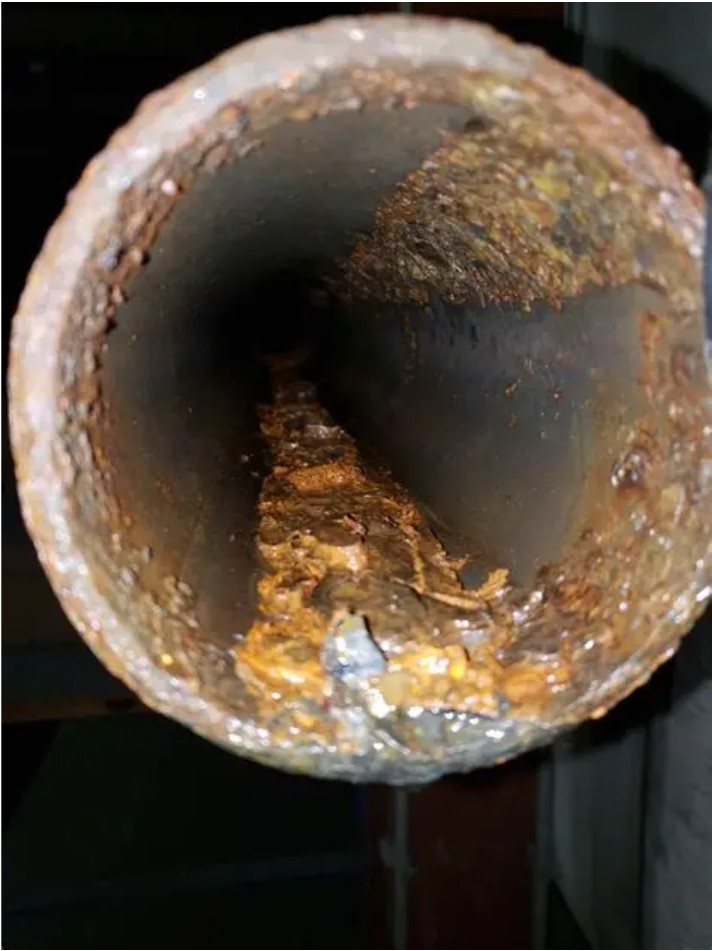

Iron oxide deposits (rust tubercles) build up inside valve bodies, especially on the water side of dry pipe valves and inside check valves. Heavy buildup restricts the waterway and slows valve operation during a fire event.

The air side of a dry pipe valve is exposed to moisture-laden compressed air. Over time, the intermediate chamber, differential latch, and air clapper corrode. Severe corrosion can prevent the valve from tripping.

Rubber gaskets on handhole covers, bonnets, and clapper pivots dry out, crack, and lose elasticity over time. Leaking gaskets cause pressure loss and false alarms. Always replace gaskets during the 5-year internal.

On alarm check valves, sediment accumulates in the retard chamber and can plug the drain orifice. A plugged retard chamber causes false waterflow alarms from normal pressure surges that the retard chamber is designed to absorb.

Swing check valve discs can develop hairline cracks from thermal cycling and water hammer. A cracked disc allows backflow — water drains out of the system when the pump stops, causing loss of prime and delayed response.

Strainers downstream of the water supply catch debris — rust flakes, pipe scale, construction debris, and even small stones. A clogged strainer restricts flow to the system and can reduce pressure below design requirements.

Clappers that do not swing freely due to corrosion on the hinge pin, sediment in the pivot, or misalignment from pipe stress. A binding clapper delays valve operation — the difference between a 2-second trip and a 30-second trip.

The 5-Year Clock Starts at Installation

The first 5-year internal is due 5 years from the date the system was placed in service — not 5 years from the last time someone opened a valve for any other reason. If the system was installed in 2020, the first 5-year internal is due in 2025 regardless of any maintenance performed in between.

A Passing Trip Test Does Not Mean the Valve Is Healthy

The quarterly trip test proves the valve opens. It does not prove the valve seals properly, that the seat is not worn, or that the internals are not corroded. A valve with a badly grooved seat can still trip — but it may be weeping water past the seat 24 hours a day.

Most Insurance Companies Track This

FM Global, Hartford Steam Boiler, and most commercial property insurers track 5-year internal dates. A missed 5-year can result in increased premiums, coverage exclusions for water damage, or even policy cancellation. Some insurers require the report within 30 days of the due date.

The System Must Be Impaired During the Inspection

There is no way to perform a 5-year internal without taking the system out of service. This triggers NFPA 25 §15.5 impairment procedures: fire watch, monitoring company notification, and potentially an ILSM in healthcare facilities. Plan for 4-8 hours per riser depending on valve type and condition.

Dry Pipe Valves Are the Hardest

Dry pipe valve 5-year internals are the most complex — you must drain all water, release all air, disassemble the valve, inspect both air and water sides, check the differential latch mechanism, verify the priming cup, clean the intermediate chamber, reassemble, re-prime, re-pressurize with air, and then restore water. Budget a full day per dry valve.

New Gaskets Every Time

NFPA 25 and every valve manufacturer require new gaskets whenever a valve is disassembled. Reusing old gaskets — even if they "look fine" — is a code violation and a leak waiting to happen. Gaskets compress permanently under bolt torque and cannot reseal reliably after being removed.
