Pull Stations (Manual Fire Alarm Boxes)
The Human Link in the Detection Chain
When smoke detectors have not yet responded, a pull station gives building occupants the power to initiate the alarm themselves. Understanding their types, code requirements, and maintenance keeps this critical manual backup reliable.
What Is a Manual Fire Alarm Box?
A manual fire alarm box — commonly called a pull station in the United States — is a wall-mounted device that allows any building occupant to manually initiate a fire alarm signal. When activated, the pull station closes a normally-open contact, sending an alarm signal to the Fire Alarm Control Panel (FACP), which then activates notification appliances and transmits an alarm to the central monitoring station.
Pull stations are one of the oldest components in fire alarm technology, predating automatic detection by decades. Despite advances in smoke and heat detection, manual stations remain a code requirement because they provide a redundant, human-initiated alarm path that does not depend on the automatic detection system functioning correctly. NFPA 72 classifies them as manual initiating devices and devotes section 17.14 to their installation requirements NFPA 72 §17.14.
Types of Pull Stations
Pull stations are manufactured in several configurations, each designed to balance ease of activation with resistance to accidental or malicious use.
NFPA 72 Installation Requirements
NFPA 72 section 17.14 establishes the minimum requirements for manual fire alarm box placement. These rules ensure that any occupant can reach a pull station quickly while exiting the building.
Mounting height: The operable part of the station must be between 42 and 48 inches above finished floor (AFF) §17.14.8.2

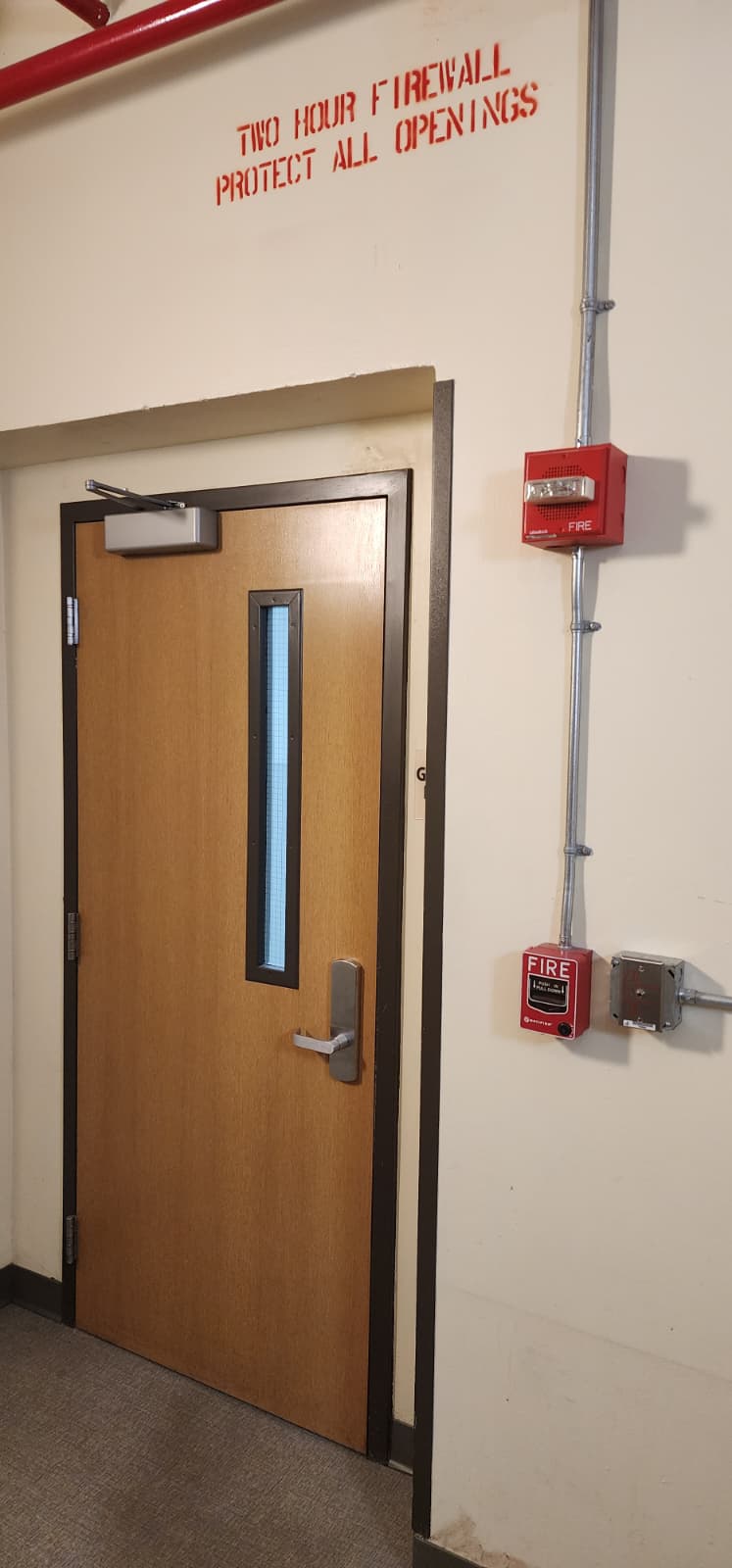

Exit proximity: A manual station is required within 5 feet of each exit doorway on each floor of the building §17.14.8.3
Travel distance: Additional stations must be provided so that the travel distance to the nearest station does not exceed 200 feet on the same floor §17.14.8.4
Additional stations: The authority having jurisdiction (AHJ) may require additional pull stations beyond the code minimum based on building layout, hazard, or occupancy type
The 5-foot rule at exits is one of the most frequently cited code violations during fire inspections. Inspectors measure from the edge of the exit door frame to the centerline of the pull station. Renovations that move doorways often leave pull stations out of compliance.
How Pull Stations Work
Despite their simplicity, pull stations rely on a precise mechanical and electrical mechanism. Inside the housing, a spring-loaded switch holds a set of contacts in the normally-open position. When the handle is pulled (or the glass is broken), the mechanical linkage releases, allowing the contacts to close. This completed circuit signals the FACP that the device has been activated.
On conventional systems, the closed contact changes the resistance on the initiating device circuit. The panel reads this resistance change and places the corresponding zone into alarm. On addressable systems, the station's built-in microprocessor communicates its unique address and alarm status over the SLC loop, enabling the panel to display the exact device location on its annunciator or LCD — for example, "PULL STATION — 2nd FLOOR EAST STAIRWELL, ADDR 047."
After activation, most pull stations must be manually reset before the fire alarm system can return to normal. Key-reset models require a special key (typically an Allen wrench or proprietary key) to reset the handle, which prevents unauthorized reset. Non-key-reset models can be restored by simply pushing the handle back into position, though the panel operator must still perform an alarm reset at the FACP.
Installation Considerations
Color and visibility. While there is no explicit NFPA requirement mandating that pull stations be red, convention and common sense have made red the near-universal color in the United States. The key requirement is that the station be conspicuous and readily visible. Painting a pull station the same color as the surrounding wall defeats its purpose and is a common deficiency finding.
ADA accessibility. The mounting height range of 42–48 inches AFF aligns with ADA/ICC A117.1 reach-range requirements for accessible operable controls. Side-approach and forward-approach reach ranges must also be considered when stations are located in alcoves or behind obstructions. The activation force must not exceed 5 pounds.
Protective covers and guards. In occupancies prone to accidental activation or vandalism, transparent protective covers (often called "stopper covers") can be installed over the pull station. Many of these covers include a local piezoelectric alarm that sounds when the cover is lifted, deterring casual tampering while still allowing legitimate activation. When covers are used, clear signage such as "LIFT COVER THEN PULL HANDLE" must be provided so occupants are not confused during an emergency AHJ discretion.
Signage. Every pull station should have visible signage identifying it as a fire alarm. Wall-mounted placard signs reading "FIRE ALARM" are recommended above or adjacent to each station, especially in facilities where the stations may not be immediately recognizable to visitors.
Inspection, Testing & Maintenance
NFPA 72 Chapter 14 (Inspection, Testing, and Maintenance) sets the ITM schedule for manual fire alarm boxes. Consistent inspection and testing is essential because pull stations are passive devices that can fail silently.
During annual testing, coordinate with the central monitoring station to place the system on test. Tripping a pull station sends a real alarm signal, and failure to notify the monitoring company will result in a fire department dispatch NFPA 72 §14.2.4.
Common Deficiencies
Pull station deficiencies are among the most frequently cited findings during fire inspections and accreditation surveys. The following issues appear repeatedly in the field:
- Obstructed access — Furniture, equipment, or storage blocking the station so occupants cannot reach it
- Incorrect mounting height — Stations installed above 48 inches or below 42 inches AFF
- Missing at exits — Renovated doorways or added exits without a corresponding pull station within 5 feet
- Painted over — Maintenance crews painting the station the same color as the wall, obscuring the handle and labeling
- Covers without signage — Protective covers installed but no instructions telling occupants how to operate the station
- Damaged or stuck mechanisms — Handles that do not move freely or contacts that do not close, discovered only during annual testing
- Missing stations — Travel distance exceeding 200 feet on a floor with no intermediate station
Vandalism Prevention and Tamper Concerns
False fire alarms from malicious pull station activation are a significant problem in schools, universities, transit stations, and public housing. Each false alarm desensitizes occupants, wastes fire department resources, and can result in fines from the AHJ. Several strategies are used to combat this:
Dual-action mechanisms require two deliberate motions to activate, which dramatically reduces impulsive false pulls. Protective covers with integral alarms draw immediate attention to anyone tampering with the station, creating a psychological deterrent. Some jurisdictions also allow surveillance cameras to be pointed at pull stations in high-vandalism areas.
It is important that vandalism-prevention measures never make it more difficult for a legitimate user to activate the alarm in a real emergency. The AHJ must approve any protective device before it is installed. Covers that require tools to open or that are locked with a padlock are never acceptable — they defeat the purpose of the manual alarm entirely.
References
1. NFPA 72 (2022), §17.14 — Manually actuated alarm-initiating devices.
2. NFPA 72 (2022), §14.4.5 — Testing frequency for initiating devices.
3. NFPA 72 (2022), §14.3.5 — Visual inspection of initiating devices.
4. NFPA 72 (2022), §14.2.4 — Notification to monitoring station before testing.
5. ICC A117.1 — Accessible and Usable Buildings and Facilities (reach range).
6. ADA Standards for Accessible Design — Operable parts and reach requirements.
