Kitchen Hood Suppression
NFPA 96 & UL 300

Why Grease Fires Need Their Own System

A grease fire on a commercial flat-top, deep fryer, or char-broiler produces cooking oil burning well above its autoignition temperature. Water flashes to steam and throws burning oil; dry chemical knocks flames down but offers no cooling, so the oil can reignite as soon as the agent dissipates; CO₂ displaces oxygen but doesn't cool. None of these handle the real challenge of a deep-fat cooking fire: the oil is at 600°F or hotter and will re-ignite the moment a fresh air path opens unless you physically cool it.

The answer is a wet-chemical agent — typically a potassium-based alkaline solution — discharged in a fine mist that does three things at once: smothers the flame, forms a saponification crust with the hot oil that seals the surface, and cools the oil below its autoignition point. This combination is uniquely suited to Class K (cooking oil) fires. The standard that requires and governs these systems is NFPA 96, and the listing standard for the chemical agent is UL 300.

UL 300 — The Regulatory Shift

Before 1994, commercial kitchen suppression systems were listed under UL 300 Part 1 and used dry chemical agents with no cooling capability. A series of re-ignition fires — especially with the industry's shift to vegetable oil, which has a much higher autoignition temperature than animal fats — exposed the limits of dry chemical. UL 300 was revised to require a wet chemical agent and to test against vegetable oil temperatures of 685°F or greater.

Any commercial kitchen hood system installed since 1994 must be UL 300 compliant. Many older dry-chemical systems are still in service in older facilities, but insurance carriers and AHJs are aggressively pushing upgrades during every required service visit. If you see a silver tank labeled “Ansul R-102” or “Pyro-Chem PCL,” that's a wet-chemical UL 300 system. A tank labeled “Ansul R-101” is the old dry chemical.

How It Actuates

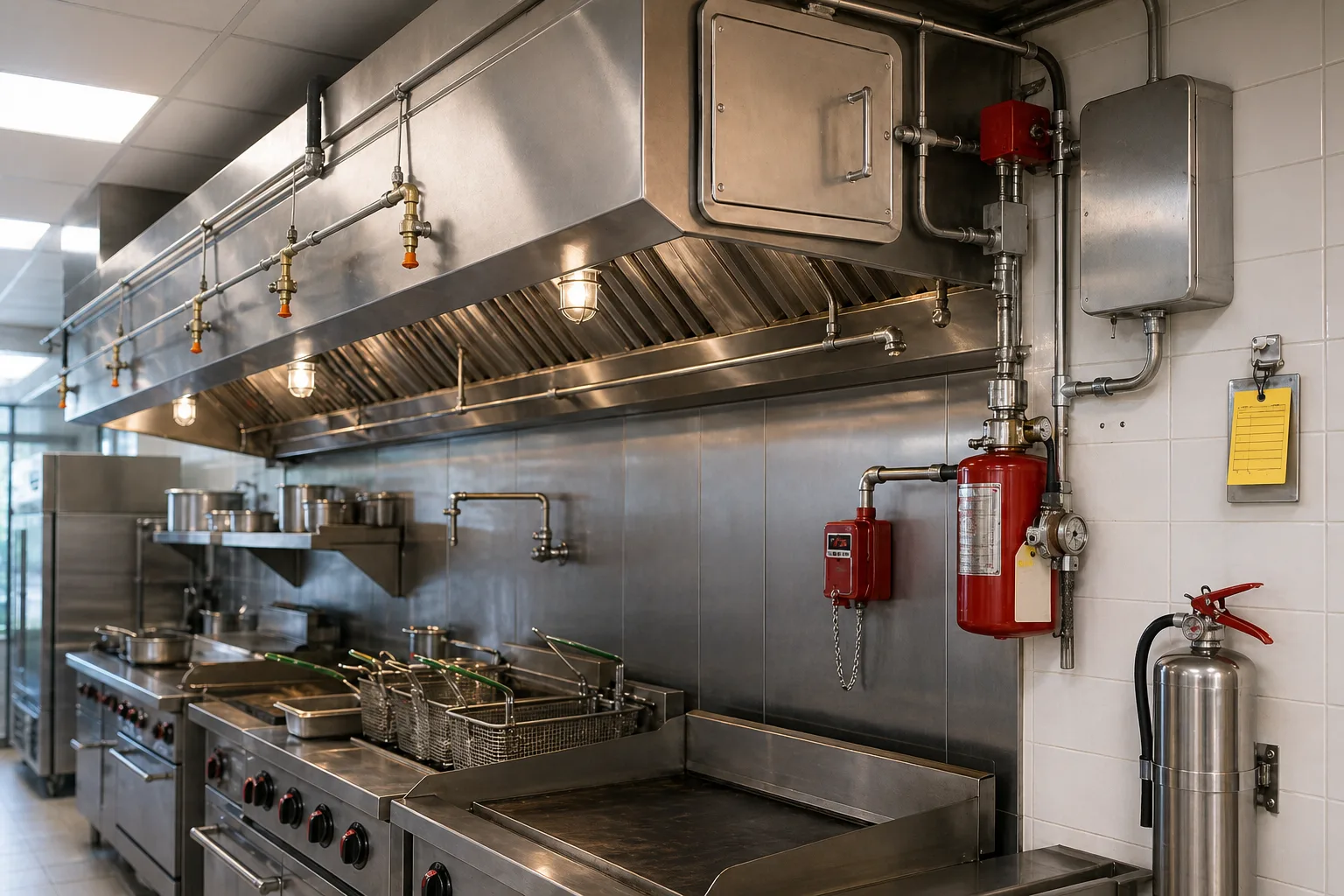

The system operates on a fusible-link detection line. A stainless cable runs through the hood plenum, passing through fusible links rated 212°F, 280°F, 360°F, or 500°F depending on location. The cable is tensioned by a spring inside the control cabinet. When any link in the path melts, the cable releases, the spring drives an actuator, and the actuator punctures a CO₂ cartridge or releases a nitrogen charge that pressurizes the wet-chemical tank. Discharge is immediate.

The same actuator also simultaneously:

• Shuts off all gas and electric power to the cooking appliances (via a mechanical gas valve or electrical shunt trip).
• Sends a relay signal to the fire alarm panel if one is present.
• Optionally shuts off makeup air and bathroom exhaust fans to avoid pressurizing the space during discharge.

Nozzle Coverage

Every wet-chemical system is designed around a specific list of appliance-specific nozzles. A single nozzle covers a specific depth and width of fryer, range, or char-broiler, and its coverage is limited to a specified distance below the nozzle. Changing an appliance — replacing a 24″ fryer with a 30″ fryer, moving a range down the line, or adding a wok — invalidates the system design. A new hazard analysis is required, and nozzles may need to be moved, added, or swapped.

NFPA 96 Service Requirements
