Diesel Engine Driver
Independent Power for Fire Pumps
The dedicated internal combustion engine that drives a fire pump when electric power is unavailable, unreliable, or compromised by the very fire the pump must fight.
What Is a Diesel Engine Driver?

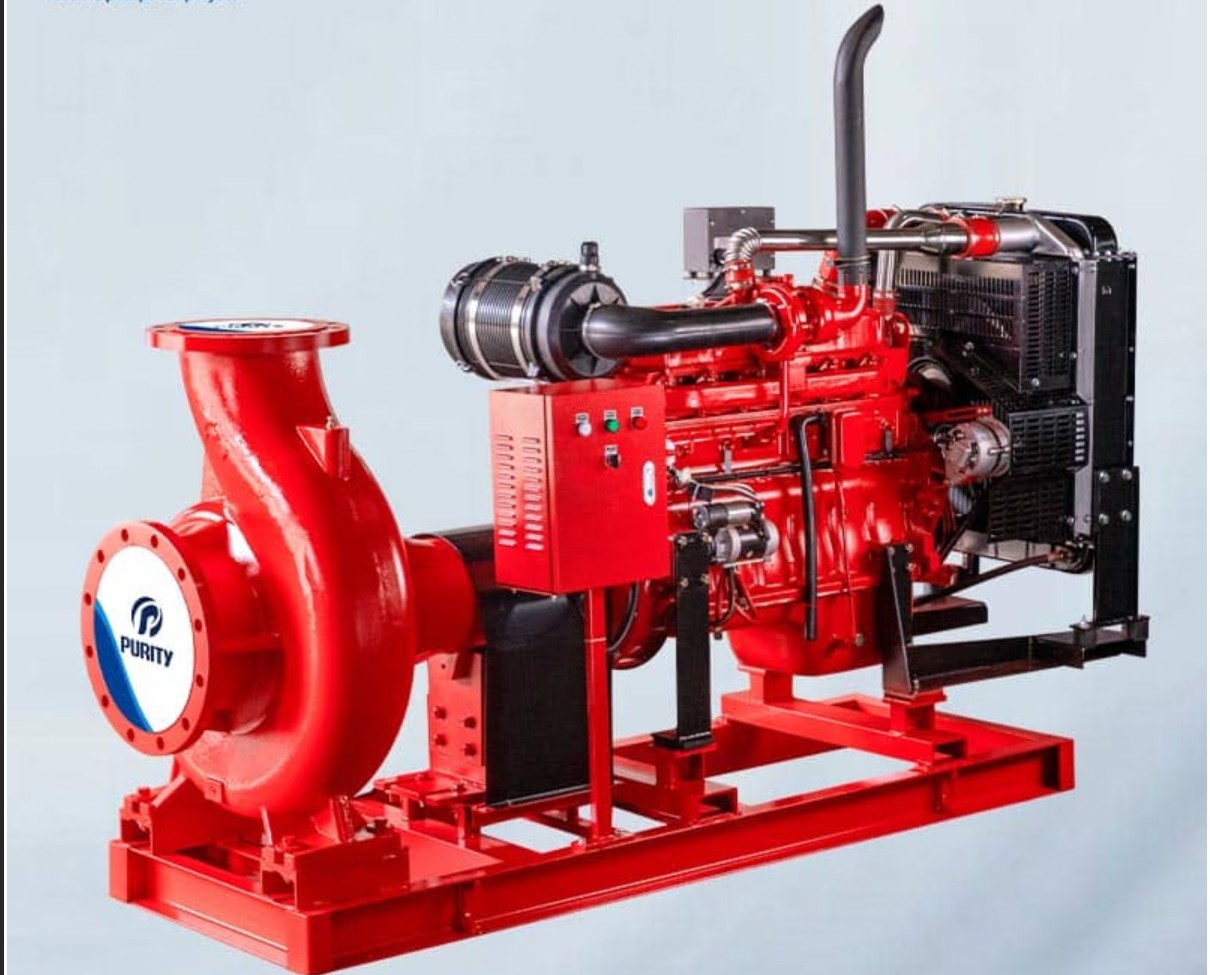

A diesel engine driver is a heavy-duty internal combustion engine purpose-built and listed to drive a centrifugal fire pump. Unlike a general-purpose diesel you might find powering a generator or construction equipment, a fire pump diesel must meet stringent standards set by NFPA 20, Chapter 11, and carry a listing from a recognized testing laboratory such as UL or FM. The engine provides an independent, dedicated power source that does not rely on the buildingβs electrical service β a critical advantage when the fire itself may be the reason the power grid fails.
Diesel drivers are found wherever the Authority Having Jurisdiction (AHJ) determines that the electric supply is not sufficiently reliable, or where code mandates an independent power source. They are especially common in high-rise buildings, industrial facilities, remote sites, and healthcare campuses where fire pump operation is non-negotiable.
Why Diesel?
Fire pumps must operate during the worst moments of a building emergency β moments when utility power may already be lost. An electric motor driver depends on the grid or an emergency generator, both of which introduce a dependency chain. A diesel engine driver eliminates that chain entirely: its fuel sits in a dedicated tank in the pump room, its batteries are always on charge, and its controller is wired to start the engine automatically the instant system pressure drops.
Many jurisdictions require a diesel driver as either the primary pump driver or as a backup alongside an electric driver. In dual-pump arrangements, you will often see one electric-driven pump and one diesel-driven pump to provide true source diversity. Where only a single pump is installed and reliable dual-feed electric service cannot be demonstrated, the AHJ may mandate a diesel driver as the sole prime mover.
How It Works
The diesel engine couples to the fire pump through a right-angle gear drive or, less commonly, a flexible coupling on horizontal split-case pumps. When system pressure falls below the set point on the pressure switch β or when a fire alarm signal triggers the controller β the engine controller energizes the starter motor. A battery-powered electric starter cranks the engine through an automatic sequence defined by NFPA 20.
Once running, the engine spins the pump impeller at its rated speed (typically 1760 or 2350 RPM depending on the pump curve). A speed governor maintains consistent RPM regardless of load. The engine continues to run until manually shut down by qualified personnel β there is no automatic shutdown on the fire signal side. Only critical engine faults (such as overspeed) may trigger an automatic stop NFPA 20 Β§11.2.6.
Key Components
- Diesel engine β Listed per UL 1247 or FM-approved for fire pump service. Not a repurposed truck or generator engine.
- Right-angle gear drive β Connects the vertical-shaft engine output to the vertical-shaft pump impeller.
- Fuel tank β Sized for a minimum of 8 hours at full rated load NFPA 20 Β§11.5.
- Dual battery sets β Each set independently capable of powering all 6 cranking cycles.
- Dual battery chargers β One charger per battery set, keeping both at full charge at all times.

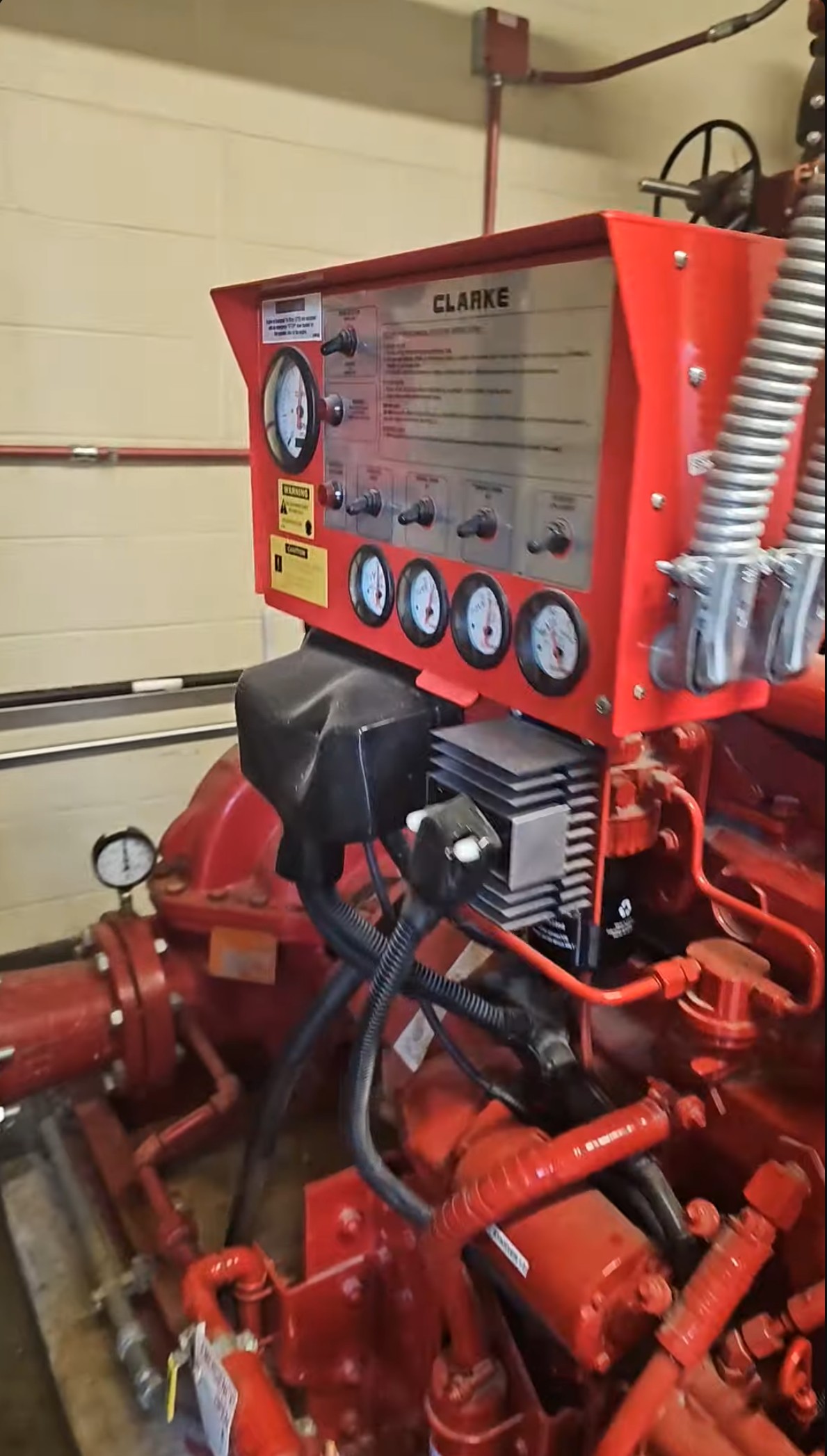

- Engine controller β Listed for fire pump service; handles automatic start sequencing, monitoring, and alarm signaling.
- Cooling system β Heat exchanger (water-cooled) or radiator (air-cooled), sized for continuous full-load operation.
- Exhaust system β Piped to the building exterior with proper clearance from combustibles and adequate muffler.
- Speed governor β Maintains rated RPM under varying pump load conditions.
Automatic Cranking Sequence
NFPA 20 Β§11.2.3.3 mandates 6 automatic cranking cycles. Each cycle consists of 15 seconds of cranking followed by 15 seconds of rest. The first three cycles draw from Battery Set 1; the second three draw from Battery Set 2. If the engine fails to start after all 6 attempts, the controller must lock out automatic cranking and transmit a trouble signal to the fire alarm panel. Manual start remains available.
This dual-battery arrangement ensures that even if one battery set is completely dead, the other set provides three full cranking attempts β enough to start a healthy engine. Both sets must be tested independently during annual maintenance.
NFPA 20 Installation Requirements
Beyond the cranking sequence, NFPA 20 Chapter 11 imposes several critical requirements on diesel engine driver installations:
- Listing: The engine must be specifically listed or approved for fire pump service β a standard industrial diesel is not acceptable NFPA 20 Β§11.1.
- Automatic start triggers: Pressure drop (via pressure switch), fire alarm signal, or manual start at the controller NFPA 20 Β§11.2.3.
- Fuel supply: Minimum fuel for 8 hours of continuous operation at 100% rated load. The fuel tank must be dedicated to the fire pump engine NFPA 20 Β§11.5.
- Ventilation: The engine room must have sufficient air supply for combustion, cooling, and personnel safety. Louvers or mechanical ventilation may be required depending on climate.
- Exhaust: Must discharge to the exterior of the building with clearance from windows, air intakes, and combustible materials.
- Room temperature: The fire pump room must be maintained above the minimum temperature recommended by the engine manufacturer, typically 40Β°F (4.4Β°C) or higher.
NFPA 25 Inspection, Testing & Maintenance
NFPA 25 Chapter 8 establishes the ITM schedule for diesel-driven fire pumps. Because a diesel has far more consumable and wear components than an electric motor, the maintenance burden is significantly higher.
| Frequency | Task |
|---|---|
| Weekly | Visual inspection: oil level, coolant level, fuel level, battery terminal voltage, leaks. Run engine for 30 minutes under no-flow (churn) conditions. |
| Monthly | Check battery electrolyte levels (flooded cells), tighten battery connections, inspect charger output, verify controller is in AUTO. |
| Annual | Full-flow performance test per NFPA 25 Β§8.3.3. Inspect governor, belts, hoses, exhaust system, coolant condition. Change oil and filters per manufacturer schedule. |
| 3-Year | Comprehensive performance test per NFPA 25 Chapter 8 β full curve verification at shutoff, 100%, and 150% of rated flow. |
The weekly 30-minute run test is especially important for diesel drivers. Unlike electric motors that can sit idle for months, a diesel engine that is not exercised regularly may develop fuel degradation, sticky injectors, or dead batteries β any of which could prevent it from starting when it matters most.
Common Deficiencies
Fire pump diesel engines are one of the most frequently cited items during annual inspections. The most common deficiencies include:
- Low fuel level β The single most common finding. Fuel gauges should be checked weekly and the tank topped off promptly.
- Dead or weak batteries β Corroded terminals, failed chargers, or expired batteries that cannot deliver adequate cranking current.
- Controller not in AUTO β The controller must remain in automatic position at all times. A controller left in OFF or MANUAL after a test run defeats the entire purpose of the installation.
- Cooling system failures β Low coolant, failed thermostats, clogged heat exchangers, or inoperative block heaters in cold climates.
- Exhaust leaks β Corroded or disconnected exhaust piping creating a carbon monoxide hazard in the pump room.
- Overdue oil and filter changes β The engine may start, but accelerated wear from dirty oil shortens its service life dramatically.
- No weekly run test records β Even when the test is performed, missing documentation is treated as a deficiency by most AHJs.
βΆ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube βReferences
1. NFPA 20 (2022), Ch. 11 β Stationary fire pump diesel engine installation.
2. NFPA 25 (2023), Β§8.3 β Fire pump testing and maintenance.
3. UL 1247 β Diesel engines for driving centrifugal fire pumps.
4. FM Global Data Sheet 3-7 β Fire protection pumps.
